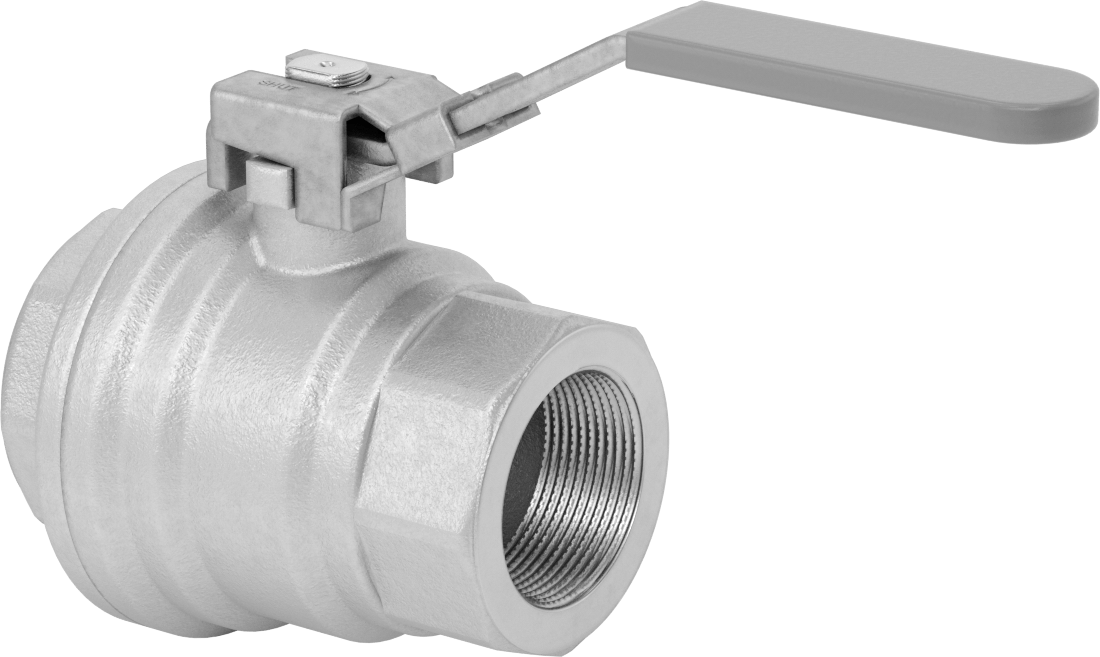

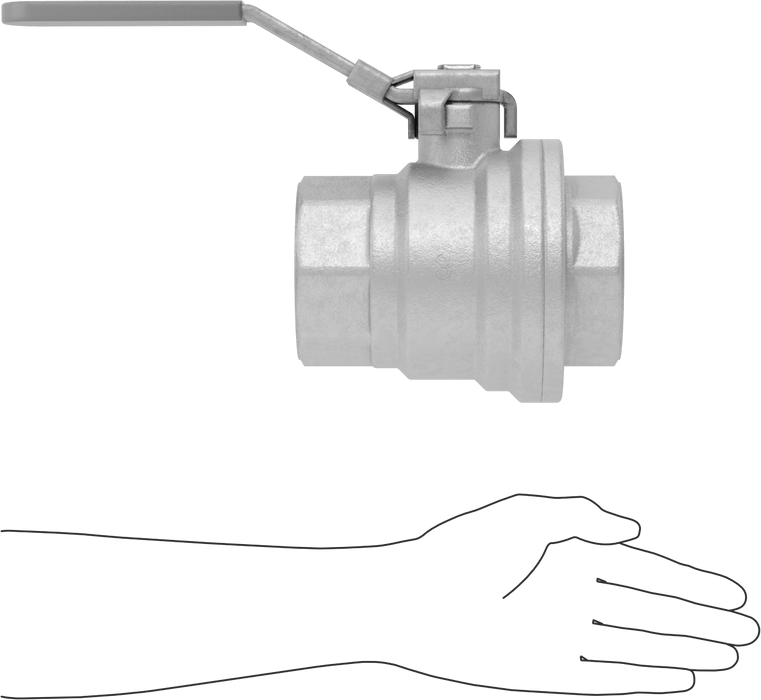

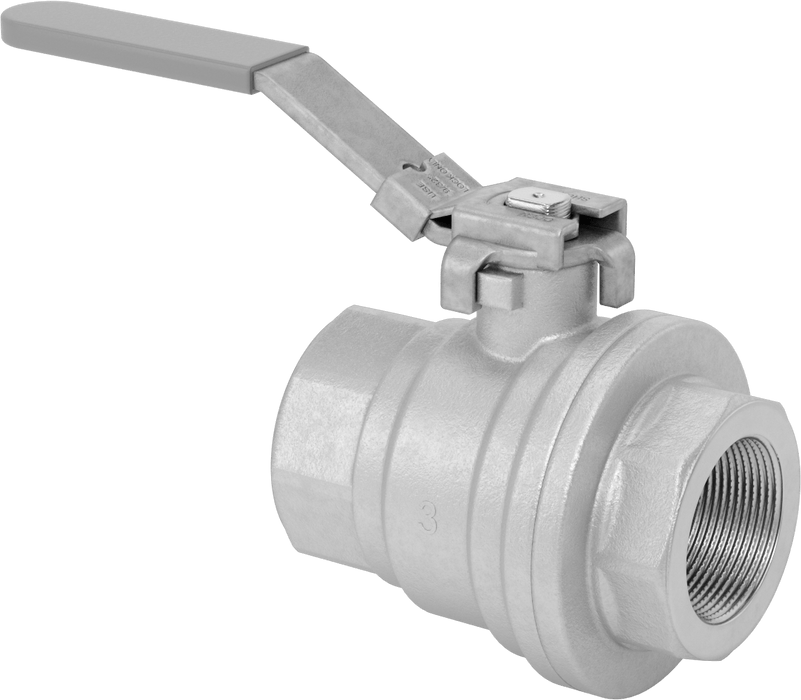

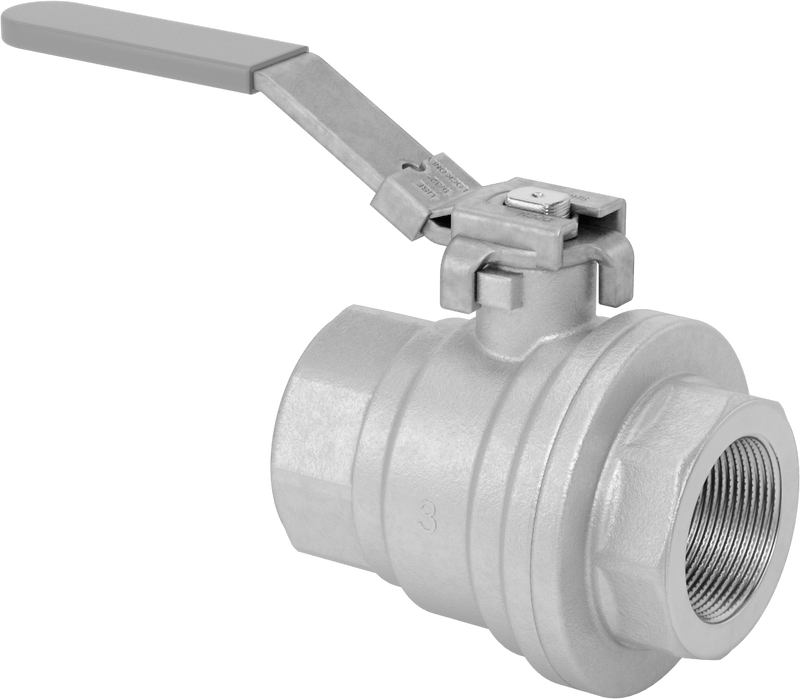

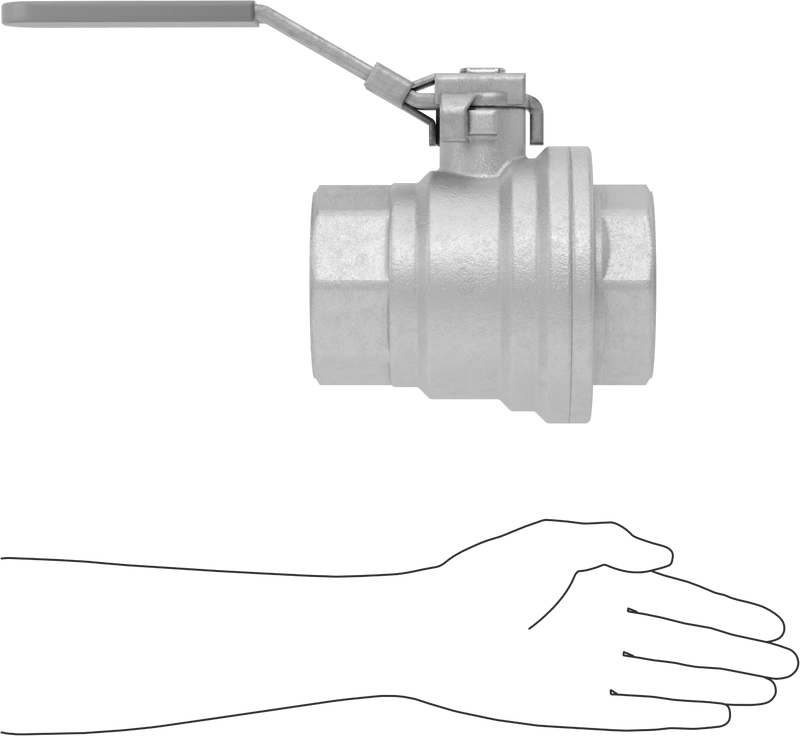

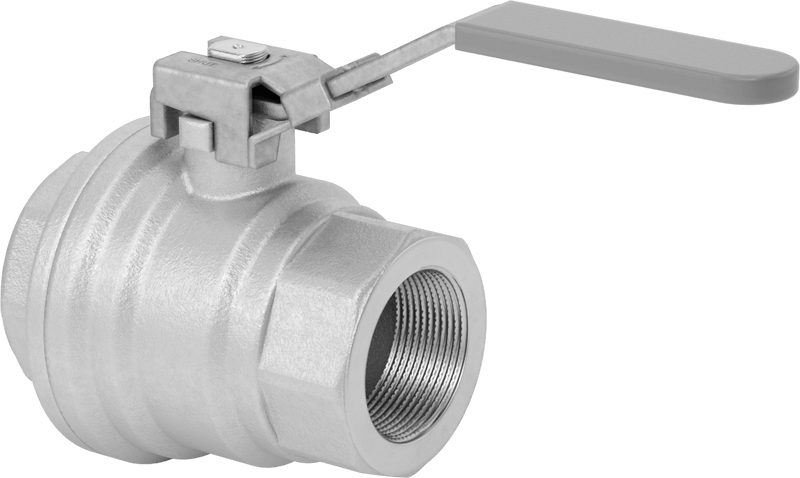

McMaster 4629K72 Brass Body On/Off Valve with Lever Handle, Lockable, 3 NPT Female, 450 psi

McMaster 4629K72 Brass Body On/Off Valve with Lever Handle, Lockable, 3 NPT Female, 450 psi

UPC: | Harmonization / Schedule B : 8481.80.1085

Country of Origin: Italy | Shipping Weight: 13 lbs

$753.40 - $753.40
$753.40
$753.40 - $753.40
$753.40

Use these valves in general purpose applications, such as those with water, oil, air, and inert gas. Brass valves have good corrosion resistance to air, water, and oil. Lever handles give you the most leverage for quickly opening and closing valves with minimal effort.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Warning: Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.

Pipe Size 3
Flow Coefficient (Cv) 740
Maximum Pressure 450 psi @ 100° F
Maximum Steam Pressure 150 psi @ 350° F
Temperature Range -40° to 350° F
Vacuum Rating 29.9 in. of Hg
Port Type Full
End-to-End Length 7"
Valve Function On/Off
Valve Type Ball
Activation Manual
Valve Operation Handle
Handle Style Lever
Handle Type Lockable
Fitting Type Connector
Connection Type Pipe
Connection Style Threaded
Gender Female × Female
Thread Type NPT
Body Material Brass
Ball Material Brass
Seal Material Fluoroelastomer Rubber
Seat Material PTFE Plastic
Shape Straight
For Maximum Shackle Diameter 9/32"

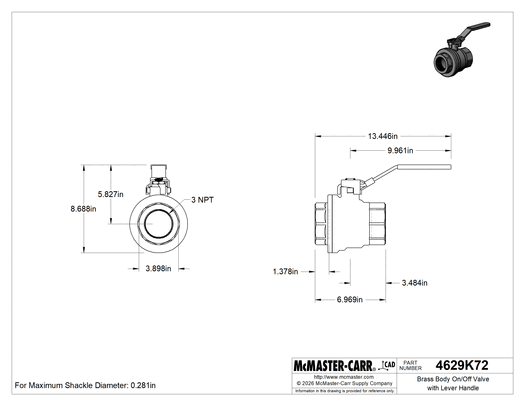

Height 8 11/16"
Length 13 9/16"
For Use With Water, Oil, Air, Argon, Helium, Krypton, Neon, Xenon, Steam
Specifications Met CSA-US Certified, CSA Certified
CSA File Number 112439_0_000
UL File Number MH15505
Excellent Chemical Compatibility Air, Argon, Butane, Diesel Fuel, Gasoline, Helium, Kerosene, Krypton, Neon, Nitrogen, Oil, Oxygen, Propane, Soap Solutions, Steam, Water, Xenon
Moderate Chemical Compatibility Carbon Dioxide, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Spirits, Natural Gas, Salt Water, Toluene, Xylene
RoHS Compliance RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy
REACH Compliance Not Compliant
DFARS Compliance Specialty Metals COTS-Exempt
Country of Origin Italy
Schedule B Number 8481.80.1085
ECCN EAR99
