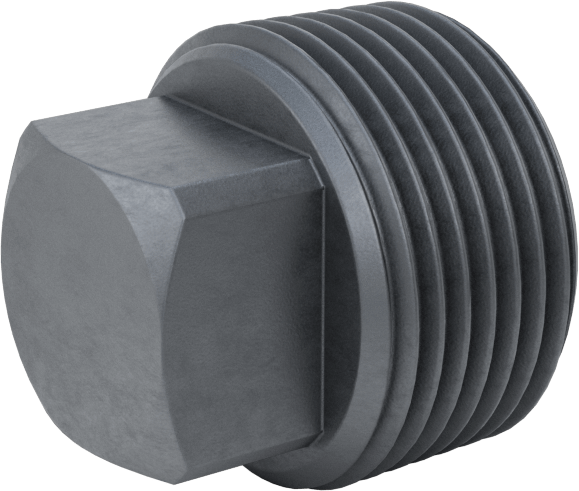

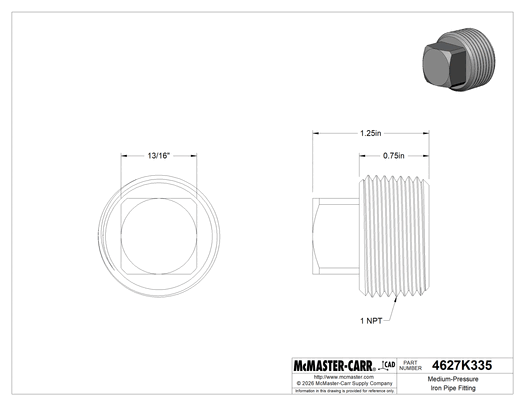

McMaster 4627K335 Medium-Pressure Iron Pipe Fitting, Plug with External Square Drive, 1 NPT

McMaster 4627K335 Medium-Pressure Iron Pipe Fitting, Plug with External Square Drive, 1 NPT

UPC: | Harmonization / Schedule B : 7307.19.9090

Country of Origin: United States | Shipping Weight: 0.23 lbs

$53.71 - $53.71
$53.71
$53.71 - $53.71
$53.71

With better strength than our low-pressure iron and steel pipe fittings, these can handle medium-pressure applications. They are for use in noncorrosive environments.

Pressure Rating Medium Pressure
Shape Cap and Plug
Drive Style External Square
Fitting Type Plug
Fitting Connection NPT Male
Pipe Size 1
Construction Solid
Pressure Class 300
Body Shape Square
Material Iron
Maximum Pressure @ Temperature 400 psi @ 72° F
Maximum Steam Pressure @ Temperature 300 psi @ 550° F
Certification UL Listed
Connects To Pipe
Class 300
Material Steel
For Pipe Material Steel
For Pipe Schedule 80
For Use With Air, Natural Gas, Oil, Steam, Water
Length 1 1/4"
Specifications Met ASME B1.20.1, ASME B16.14, ASTM A126
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 730719.9090
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
