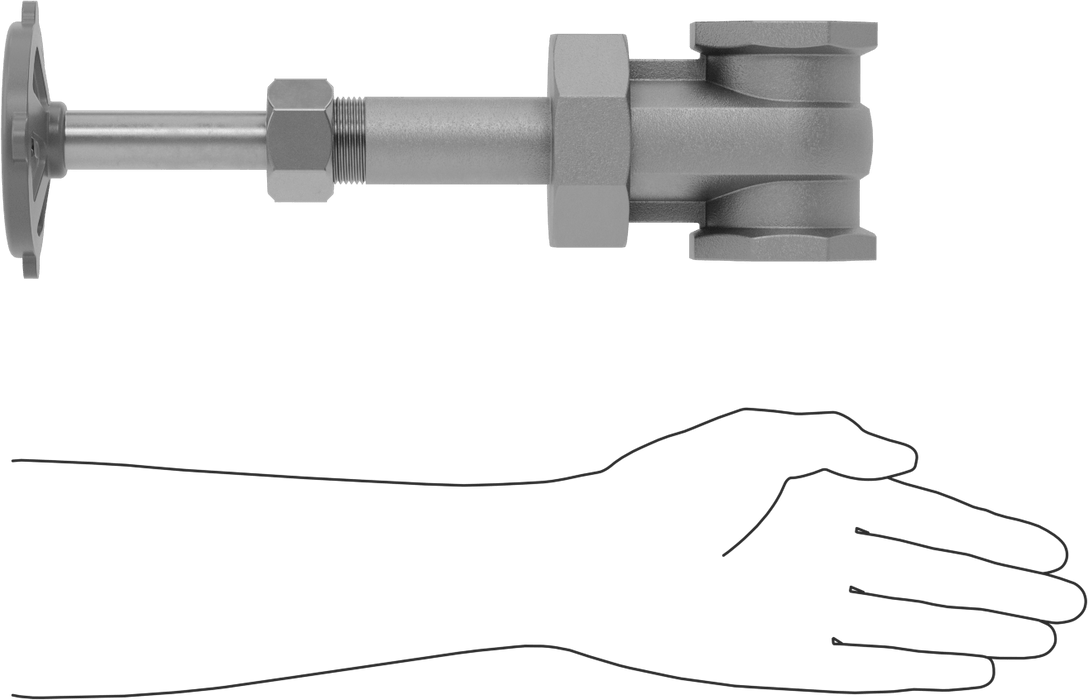

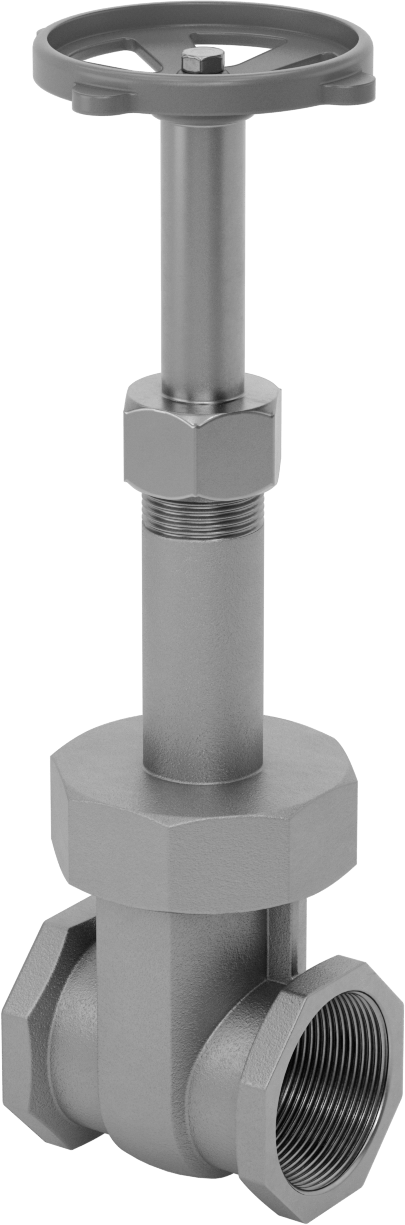

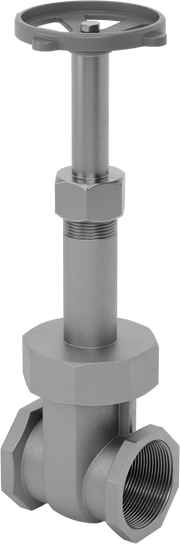

McMaster 4599K48 Gradual On/Off Valve, Bronze Body & Gate, Easy-Maintenance, Wheel Handle Rising Stem, 2 NPT Female, Class 150, MSS-SP-80

UPC: | Harmonization / Schedule B : 8481.80.1060

Country of Origin: United States | Shipping Weight: 12 lbs

Original price $509.05 - Original price $509.05
Original price
$509.05
$509.05 - $509.05
Current price $509.05

Maintain and repair these valves while they're still inline — you can disassemble the stem so there's no need to unthread the pipe connections. Also known as gate valves, they open and close gradually to prevent sudden starts and stops. Control the flow by turning the wheel handle multiple times. This gives you more control than a pull handle. Made of bronze, these valves have good corrosion resistance.

Valves with a rising stem lift the handle as they open and lower it as they close. At a glance, you can see if flow is on or off. The stem is isolated from what's flowing through your line, giving these valves a longer lifespan than valves with a nonrising stem.

Valve Function On/Off
Valve Type Gate
Actuation Manual
Handle Style Wheel
Handle Material Iron
Pipe Size 2
Gender Female
Thread Type NPT
Flow Coefficient (Cv) 230
Pressure Class 150
Maximum Pressure 300 psi @ 100° F
Maximum Steam Pressure 150 psi @ 365° F
Temperature Range -20° to 400° F
Body Material Bronze
Gate Material Bronze
Packing Material Graphite

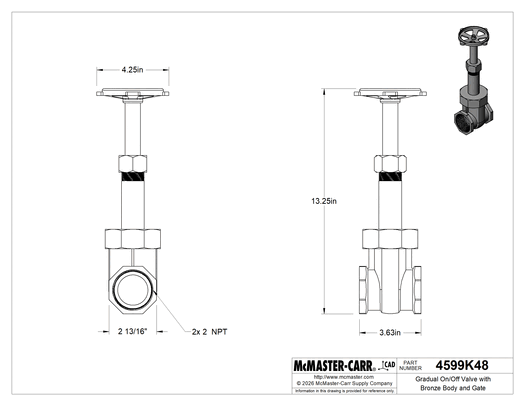

End-to-End Length 3 5/8"
Overall
Height 13 1/4"
Stem Type Rising
Seal Type Packing
For Use With Water, Oil
Specifications Met MSS-SP-80
RoHS RoHS 3 (2015/863/EU) Compliant
REACH Not Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin United States
USMCA Qualifying No
Schedule B 8481.80.1060
ECCN EAR99
