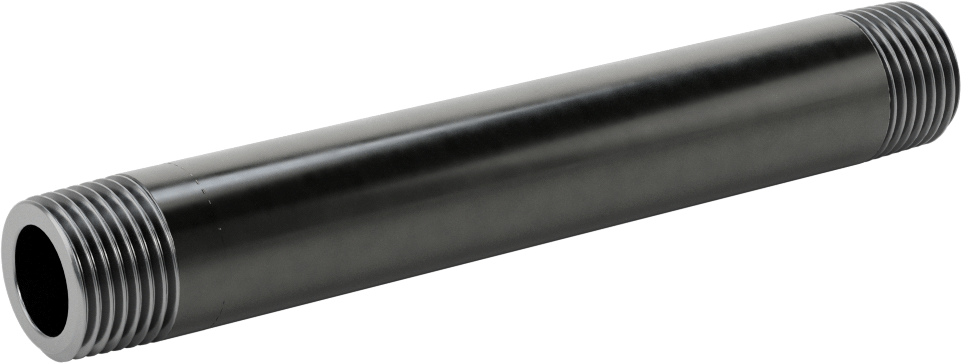

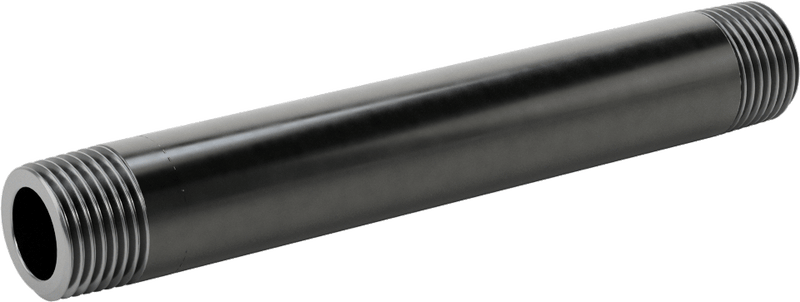

McMaster 4550K514 Thick-Wall Welded Steel Pipe Nipple, Threaded Both Ends, 1/2 NPT, 5-1/2" Long, Sch 80, Class 300

McMaster 4550K514 Thick-Wall Welded Steel Pipe Nipple, Threaded Both Ends, 1/2 NPT, 5-1/2" Long, Sch 80, Class 300

UPC: | Harmonization / Schedule B : 7307.99.4000

Country of Origin: United States | Shipping Weight: 1 lbs

$48.11 - $48.11
$48.11
$48.11 - $48.11
$48.11

Also known as Schedule 80, this pipe has thick walls for good strength in high-pressure applications.

Welded — Pipe has a weld bead on the inside.

Pressure Rating High Pressure
Wall Thickness Rating Thick
Shape Straight
Fitting Type Pipe
Threading Threaded on Both Ends
Fitting Connection NPT Male
Pipe Size 1/2"
Length 5-1/2"
Construction Welded
Pipe Schedule 80
Material Steel
Class 300, 600
For Fitting Pressure Class 300
For Use With Air, Natural Gas, Oil, Steam, Water
ID 0.546"
OD 27/32"
Wall Thickness 0.147"
Specifications Met ASME B1.20.1, ASTM A53, ASTM A733
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 7307.99.4000
USMCA Qualifying No
