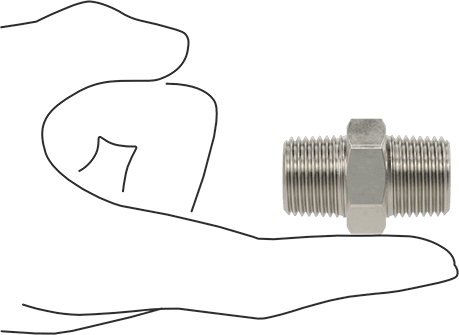

McMaster 4464K741 304 Stainless Steel Threaded Pipe Fitting Low Pressure, Straight Connector, 1/2 NPT Male

Name: McMaster 4464K741 304 Stainless Steel Threaded Pipe Fitting Low Pressure, Straight Connector, 1/2 NPT Male
Brand: McMaster-Carr
Price: 42.67 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7307.22.1000

Country of Origin: Vietnam | Shipping Weight: 0.17 lbs

$42.67 - $42.67

$42.67

$42.67 - $42.67

$42.67

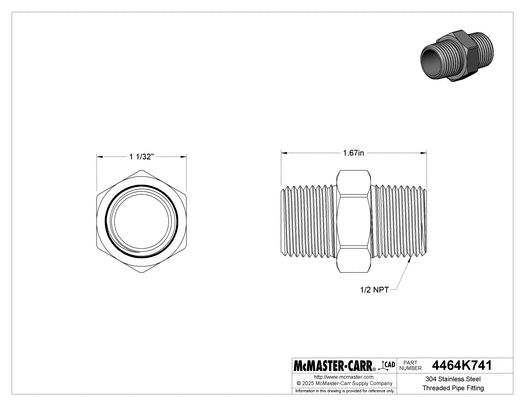

McMaster 4464K741 304 Stainless Steel Threaded Pipe Fitting Low Pressure, Straight Connector, 1/2 NPT Male

For Use With	Air, Natural Gas, Oil, Steam, Water
Shape	Straight
Type	Connector
Body Shape	Hex
Material	304 Stainless Steel
Pressure Class	150
Fabrication	Heat Treated
Connection Type	Pipe
Connection Style	Threaded
Thread Type	NPT
Gender	Male
Pipe Size	1/2
Length	1 43/64"
Hex Width	1 1/32"
For Pipe
Schedule	40
Material	304 Stainless Steel, 304/304L Stainless Steel
For Flange
Class	150
Material	304 Stainless Steel, 304/304L Stainless Steel
Specifications Met	ASTM A351
System of Measurement	Inch
Maximum Steam Pressure	150 psi @ 350° F
Maximum Pressure	300 psi @ 72° F
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	Vietnam
Schedule B	730722.1000
ECCN	2B999

Use these fittings in a low-pressure pipe line.

304 stainless steel fittings have very good corrosion resistance.
