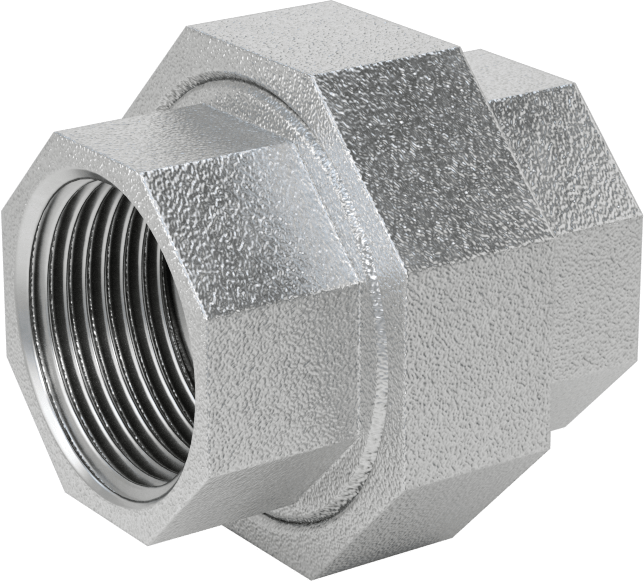

McMaster 44605K494 Low-Pressure Iron Pipe Union Connector, 1 NPT Female, Class 150, Octagon Body (sub for 44605K196)

McMaster 44605K494 Low-Pressure Iron Pipe Union Connector, 1 NPT Female, Class 150, Octagon Body (sub for 44605K196)

UPC: | Harmonization / Schedule B : 7307.19.9030

Country of Origin: United States | Shipping Weight: 1 lbs

$80.16 - $80.16
$80.16
$80.16 - $80.16
$80.16

Use these fittings for low-pressure applications in noncorrosive environments.

Union Fitting — Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

Pressure Rating Low Pressure
Shape Straight
Fitting Type Connector, Union
Fitting Connection NPT Female
Pipe Size 1"
Pressure Class 150
Body Shape Octagon
Material Iron
Maximum Pressure @ Temperature 300 psi @ 72°F
Maximum Steam Pressure @ Temperature 150 psi @ 350°F
Gasket Included Yes
Gasket Material Brass
Certification UL Listed
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water
Hex Width 2 5/64"
Length 2 1/16"
Specifications Met ASME B1.20.1, ASME B16.39
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7307.19.9030
USMCA Qualifying Yes
