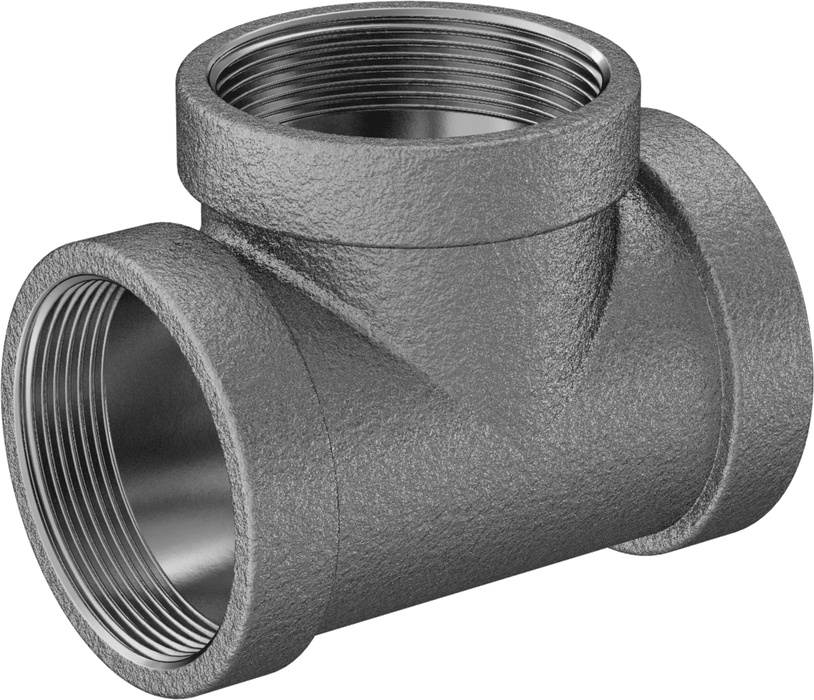

McMaster 4452K622 316 Stainless Steel Threaded Pipe Tee Connector, 3 NPT Female, Class 150, Low-Pressure

McMaster 4452K622 316 Stainless Steel Threaded Pipe Tee Connector, 3 NPT Female, Class 150, Low-Pressure

UPC: | Harmonization / Schedule B : 7307.22.5000

Country of Origin: China | Shipping Weight: 6 lbs

$364.40 - $364.40
$364.40
$364.40 - $364.40
$364.40

Use these fittings in a low-pressure pipe line.

316 Stainless Steel — Fittings are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel fittings, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.

ANSI/MSS SP-114 — Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking.

Pressure Rating Low Pressure
Shape Tee
Fitting Type Connector
Fitting Connection NPT Female
Material 316/316L Stainless Steel
Pipe Size 3"
Pressure Class 150
Maximum Pressure @ Temperature 300 psi @ 72°F
Maximum Steam Pressure @ Temperature 150 psi @ 350°F
Fabrication Heat Treated
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water
Performance Chemical Resistant, Ultra Corrosion Resistant
Specifications Met ANSI/MSS SP-114, ASTM A351
System of Measurement Inch
Country of Origin China, Vietnam
DFARS Compliance Specialty Metals COTS-Exempt
ECCN 2B999
REACH Compliance REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7307.22.5000
USMCA Qualifying No
