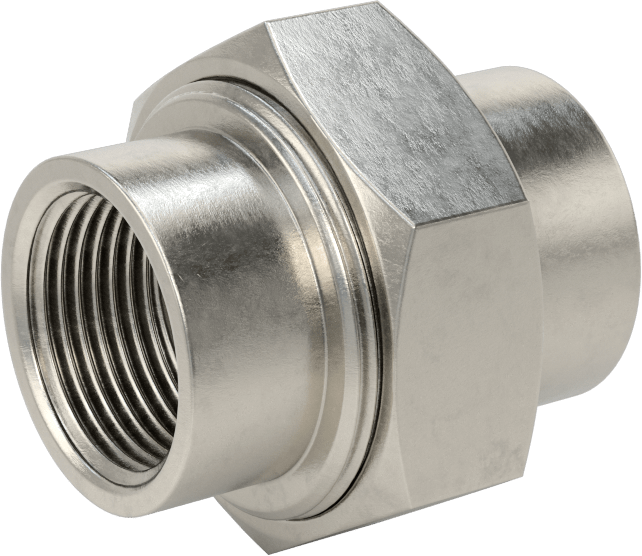

McMaster 4452K466 316 Stainless Steel Threaded Pipe Fitting, Medium-Pressure, Straight Union Connector, 1 NPT Female
UPC: | Harmonization / Schedule B : 7307.29.0000
Country of Origin: United States | Shipping Weight: 0.9 lbs
UPC: | Harmonization / Schedule B : 7307.29.0000
Country of Origin: United States | Shipping Weight: 0.9 lbs
A step up in strength from our low-pressure pipe fittings, these handle up to 1,000 psi. They’re made of stainless steel for excellent corrosion resistance.
Union Fitting — Union fittings separate into three pieces so you can access your line without unthreading pipe connections.
316 Stainless Steel—Fittings are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel fittings, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.
ANSI/MSS SP-114—Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking. These fittings adhere to high-quality standards for heat treating, material thickness, and marking.
| Pressure Rating | Medium Pressure |
| Shape | Straight |
| Fitting Type | Connector, Union |
| Fitting Connection | NPT Female |
| Material | 316 Stainless Steel |
| Pipe Size | 1 |
| Pressure Class | 1000 |
| Body Shape | Hex |
| Maximum Pressure @ Temperature | 1,000 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 650 psi @ 350° F |
| Connects To | Pipe |
| Fabrication | Heat Treated |
| Class | 150 |
| Material | 316 Stainless Steel, 316/316L Stainless Steel |
| For Pipe Material | 316 Stainless Steel, 316/316L Stainless Steel |
| For Pipe Schedule | 40 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Hex Width | 2 5/32" |
| Length | 2 3/8" |
| Nut Material | 304 Stainless Steel |
| Performance | Chemical Resistant, Ultra Corrosion Resistant |
| Specifications Met | ANSI/MSS SP-114, ASTM A182 |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | 2B999 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 730729.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
