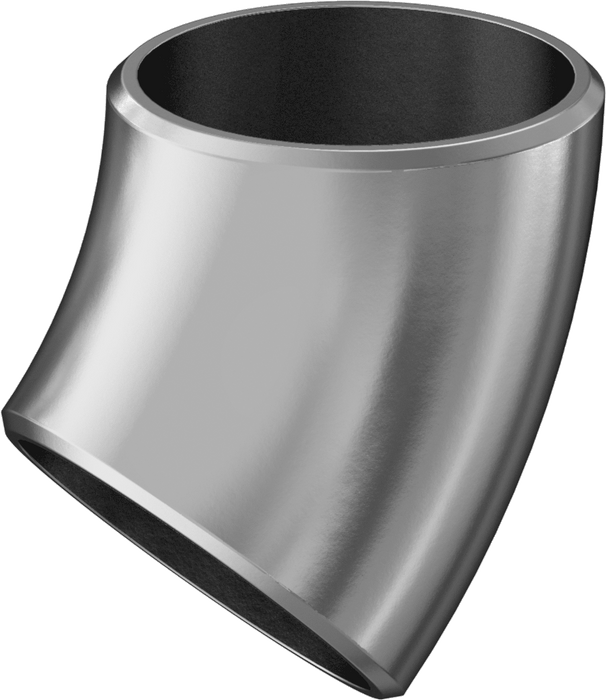

McMaster 43485K157 Standard-Wall Butt-Weld 6061 Aluminum 45° Elbow, Schedule 40, 3 Pipe Size, Unthreaded

McMaster 43485K157 Standard-Wall Butt-Weld 6061 Aluminum 45° Elbow, Schedule 40, 3 Pipe Size, Unthreaded

UPC: | Harmonization / Schedule B : 7609.00.0000

Country of Origin: United States | Shipping Weight: 1 lbs

$276.53 - $276.53
$276.53
$276.53 - $276.53
$276.53

Also known as Schedule 40 fittings, these have thicker walls than our thin-wall aluminum unthreaded pipe fittings. They have beveled ends that, when flush to pipe, create a trough for a strong weld that permits maximum flow. Fittings are lightweight with good corrosion resistance.

Pressure Rating Medium Pressure
Wall Thickness Rating Standard
Shape 45° Elbow
Fitting Type Connector
Fitting Connection Butt Weld
Pipe Size 3
Construction Seamless
OD 3 1/2"
ID 3.068"
Wall Thickness 0.216"
Pipe Schedule 40
Material 6061 Aluminum
Class 125
For Use With Air, Oil, Water
Performance Corrosion Resistant
Specifications Met ASME B16.9
System of Measurement Inch
Threading Unthreaded
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7609.00.0000
USMCA Qualifying Yes
