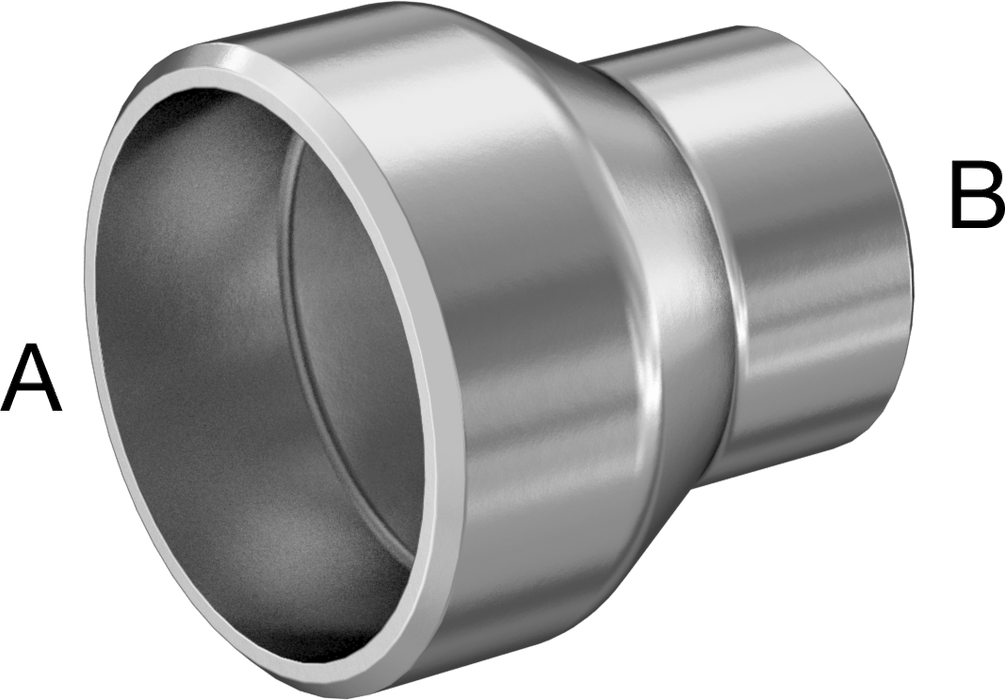

McMaster 43485K115 Standard-Wall Butt-Weld 6061 Aluminum Straight Reducer, Schedule 40, 3 × 2 Pipe Size, Unthreaded

McMaster 43485K115 Standard-Wall Butt-Weld 6061 Aluminum Straight Reducer, Schedule 40, 3 × 2 Pipe Size, Unthreaded

UPC: | Harmonization / Schedule B : 7609.00.0000

Country of Origin: United States | Shipping Weight: 1 lbs

$300.98 - $300.98
$300.98
$300.98 - $300.98
$300.98

Also known as Schedule 40 fittings, these have thicker walls than our thin-wall aluminum unthreaded pipe fittings. They have beveled ends that, when flush to pipe, create a trough for a strong weld that permits maximum flow. Fittings are lightweight with good corrosion resistance.

Pressure Rating Medium Pressure
Wall Thickness Rating Standard
Shape Straight
Fitting Type Reducer
Fitting Connection Butt Weld × Butt Weld
Pipe Size A 3
Pipe Size B 2
Construction Seamless
Pipe Schedule 40
Material 6061 Aluminum
Class 125
For Use With Air, Oil, Water
ID (A) 3.068"
ID (B) 2.067"
OD (A) 3 1/2"
OD (B) 2 3/8"
Wall Thickness (A) 0.216"
Wall Thickness (B) 0.154"
Length 3 1/2"
Performance Corrosion Resistant
Specifications Met ASME B16.9
System of Measurement Inch
Threading Unthreaded
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7609.00.0000
USMCA Qualifying Yes
