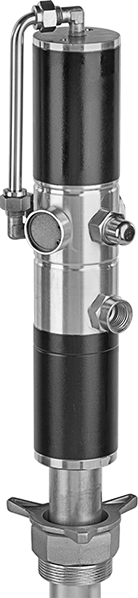

McMaster 4346K35 High-Pressure Air-Powered Drum Pump for Oil, 10.0 gpm

McMaster 4346K35 High-Pressure Air-Powered Drum Pump for Oil, 10.0 gpm

UPC: | Harmonization / Schedule B : 8413.20.0000

Country of Origin: India | Shipping Weight: 30.00 lb

$1,263.00 - $1,263.00
$1,263.00
$1,263.00 - $1,263.00
$1,263.00

Transfer lubricating oil such as hydraulic and motor oil with these pumps. They handle nearly twice the amount of pressure as other air-powered drum pumps to move high-viscosity liquids. Install an air line filter/lubricator to ensure efficiency and reduce wear on the pump.

Flow Rate 10 gpm
For Container Size 55 gal.
Maximum Viscosity 1,500 cP
Temperature (Min / Max) Not Rated / 140° F
Air Pressure 30 psi to 150 psi
Air Consumption 9 ft³/min
For Drum Opening Size 2 NPT
Includes Drum Connector
Air Connection Threaded Pipe, 1/4 NPT Female
Intake Tube Adjustability Fixed
Intake Tube OD 2"
Intake Tube Length 37"
Intake Tube Material Steel
Discharge Location Pump Body
Discharge Connection Threaded Pipe, 1/2 NPT Female
Chemical Resistance (Excellent) Hydraulic Oil, Motor Oil
Country of Origin India
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
Schedule B Number 841320.0000
USMCA Qualifying No
