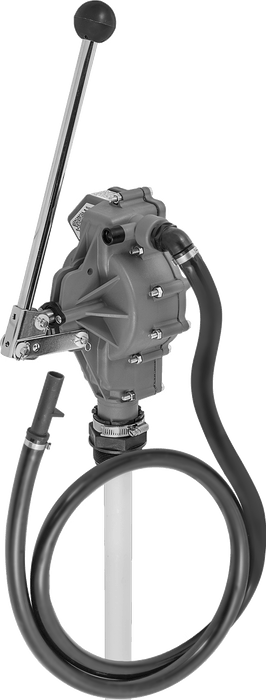

McMaster 4312K28 Quick-Dispensing Drum Pump for Fuel, with Nozzle, 32 oz/Stroke, for 55 Gallon Drum

McMaster 4312K28 Quick-Dispensing Drum Pump for Fuel, with Nozzle, 32 oz/Stroke, for 55 Gallon Drum

UPC: | Harmonization / Schedule B : 8413.20.0000

Country of Origin: United States | Shipping Weight: 10 lbs

$574.47 - $574.47
$574.47
$574.47 - $574.47
$574.47

These pumps have a 3/4" ID discharge hose for transfer applications and a vacuum breaker that drains the hose to prevent siphoning. A lever handle delivers fluid on both the forward and backward strokes for faster dispensing than other drum pumps. The handle can be mounted with the knob above or below the pump body. Lock the handle with a padlock (not included).

Always bond and ground your application for static control. For more information about bonding and grounding, see Sections 1910.106 and 1910.107 of the Federal OSHA Code or see bonding and grounding equipment.

Repair Kits — Repair kits include a gasket, a piston ring, O-rings, and valves.

Flow Rate 32 fl oz/stroke
For Container Size 55 gal.
Maximum Viscosity 410 cP
Temperature Minimum Not Rated
Temperature Maximum 70° F
For Drum Opening Size 2 NPT
Includes Drum Connector, Vacuum Breaker
Intake Tube Adjustability Fixed
Intake Tube OD 1 5/16"
Intake Tube Length 34"
Intake Tube Material Polyester Plastic
Discharge Location Hose and Nozzle, Pump Body
Discharge Hose ID 3/4"
Discharge Hose Length 8 ft.
Discharge Hose Material PVC
Pump Body Connection Port Pipe
Pump Body Connection Threaded
Pump Body Pipe Size 3/4
Pump Body Thread Type NPT
Pump Body Gender Female
Drum Pump Type Lever Handle
Maximum Shackle Diameter 1/4"
Excellent Chemical Resistance Deionized Water, Diesel Fuel, Ethanol, Ethylene Glycol, Gasoline, Hydraulic Oil, Motor Oil, Salt Water, Water, Phosphoric Acid (<40% Concentration)
Moderate Chemical Resistance Kerosene
For Use With Diesel Fuel, Ethanol, Gasoline, Hydraulic Oil, Motor Oil
Housing Material Polyester Plastic
Nozzle Material Polyester Plastic
Performance Quick Dispensing
Piston Material Polyester Plastic
Power Source Manual
Pump Type Drum
Wetted Parts Material Cork Rubber, Fluoroelastomer, Polyester Plastic, PVC, Stainless Steel
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance Not Compliant
RoHS Compliance Not Compliant
Schedule B Number 841320.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
