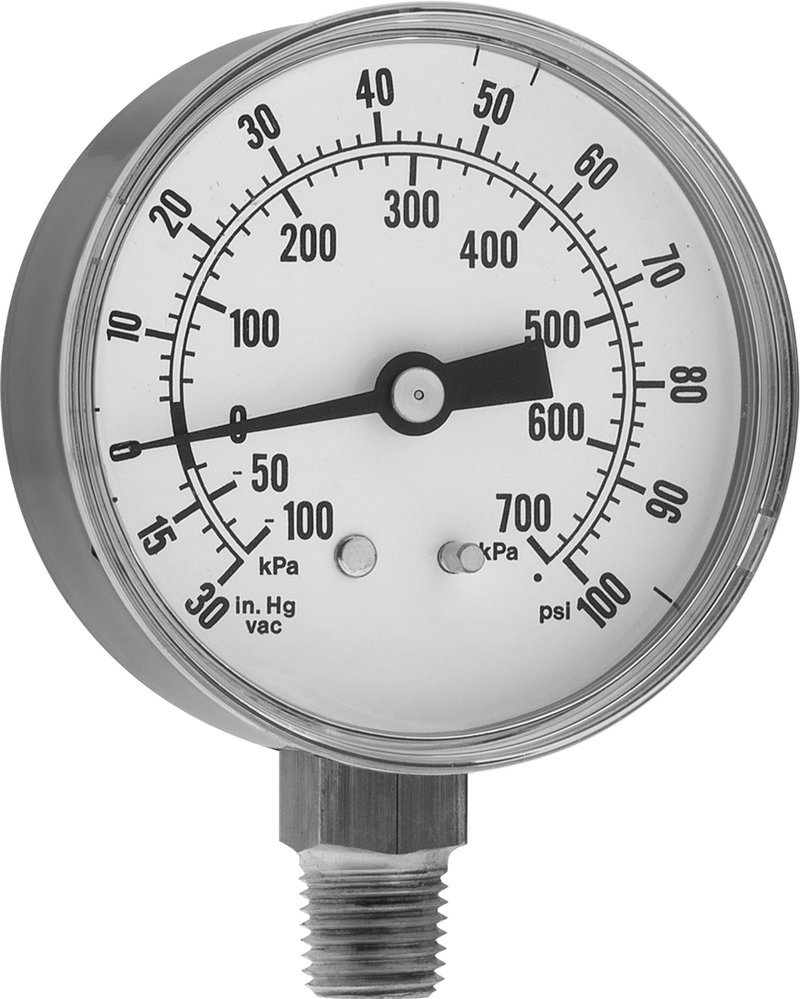

McMaster 4004K63 Dual-Scale Pressure and Vacuum Gauge with Steel Case, 2-1/2" Dial Diameter, 1/4 NPT Bottom Connection, 0–100 psi

McMaster 4004K63 Dual-Scale Pressure and Vacuum Gauge with Steel Case, 2-1/2" Dial Diameter, 1/4 NPT Bottom Connection, 0–100 psi

UPC: | Harmonization / Schedule B : 9026.20.0000

Country of Origin: Brazil | Shipping Weight: 0.5 lbs

$64.44 - $64.44
$64.44
$64.44 - $64.44
$64.44

Also known as compound gauges, these measure both pressure and vacuum. Use them with pumps, filters, regulators, compressors, and in suction and process lines.

Gauges with steel case are more impact resistant than gauges with ABS plastic case.

Measures Pressure, Vacuum
For Use With Air
Display Type Dial
Dial Type Dry
Dial Diameter 2 1/2"
Pipe Size 1/4
Scale Type Dual
Scale psi, kPa, in. of Hg
Environment Temperature Range -40° to 150° F
Process Temperature Range -40° to 150° F
Connection Type Pipe
Pipe Connection Type Threaded
Thread Type NPT
Gender Male
Case Material Steel
Connection Material Brass
Lens Material Polycarbonate Plastic
Accuracy ±2%
Accuracy Scale Mid Scale
Accuracy Grade B
Connection Location Bottom
Vacuum Range
in. of Hg 30" to 0
kPa 0 to -100
Graduation Marks
psi 2
in. of Hg 5
kPa 20
Numeric Increments
psi 10
in. of Hg 15
kPa 100
Pressure Range 0 to 700 kPa
Pressure Range 0 to 100 psi
RoHS Not Compliant
REACH Not Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin Brazil
Schedule B 9026.20.0000
ECCN EAR99
