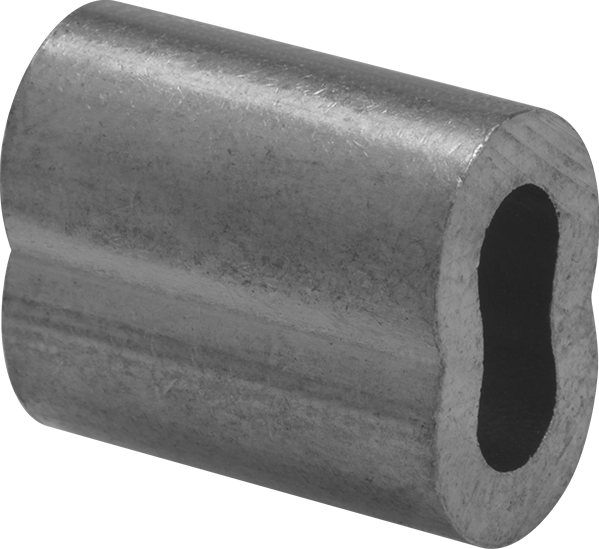

McMaster 3883T47 Wire Rope Compression Sleeve (For Lifting), Tin-Plated Copper, for 1/4" Stainless Steel/Steel Rope, Pack of 5, MS51844

McMaster 3883T47 Wire Rope Compression Sleeve (For Lifting), Tin-Plated Copper, for 1/4" Stainless Steel/Steel Rope, Pack of 5, MS51844

UPC: | Harmonization / Schedule B : 7419.80.5500

Country of Origin: United States | Shipping Weight: 0.1 lbs

$69.35 - $69.35
$69.35
$69.35 - $69.35
$69.35

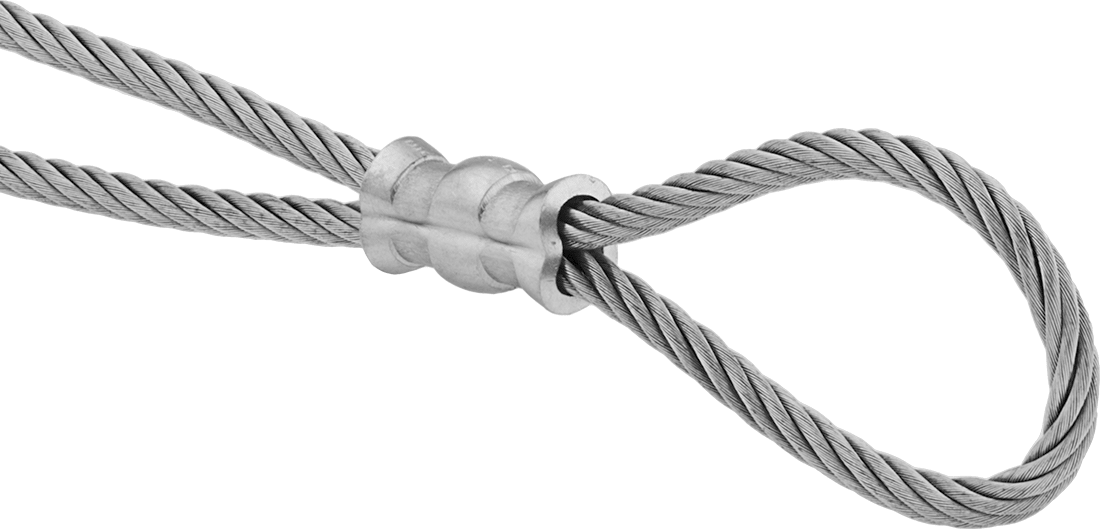

Install with a compression tool to create a strong, permanent loop. Compression sleeves are also known as ferrules, crimps, swaging, and splicing sleeves. They’re compatible with Nicopress compression tools.

Warning: Fittings must match rope diameter and be installed correctly to obtain maximum holding power. Test all assemblies for required strength before use. Do not use with coated rope unless the coating is removed.

Tin-Plated Copper — Tin-plated copper sleeves have mild corrosion resistance.

Material Tin-Plated Copper
For Wire Rope Material Steel, Stainless Steel
For Rope Diameter 1/4"
For Wire Rope Construction 7 × 7 Strand Core, 7 × 19 IWRC, 7 × 19 Strand Core, 6 × 19 IWRC
Sleeve Length 1"
Pack Size 5
Required Number of Compressions 3
Rope Capacity Adjustment Factor 100%
Specifications Met ASME B30.9
Military Specification MS51844
Application For Lifting
Attachment Type Loop
Fitting Type Compression Sleeve
Required Installation Tool Compression Tools
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7419.80.5500
USMCA Qualifying No
