McMaster 3666T13 Tilting Drum Lifter with Chain, for 22" to 23-1/2" Drum Diameter, 800 lbs. Full Drum Capacity
UPC: | Harmonization / Schedule B : 8428.90.0390
Country of Origin: United States | Shipping Weight: 95.0 lbs
UPC: | Harmonization / Schedule B : 8428.90.0390
Country of Origin: United States | Shipping Weight: 95.0 lbs

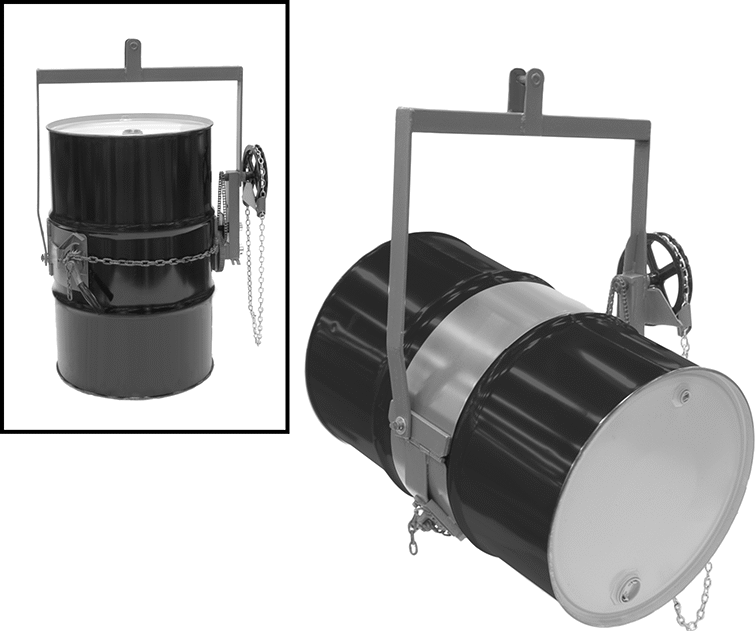

Raise, transport, tilt, and drain full drums using the hook of a crane or hoist. A lock on each side of the frame keeps the drum vertical or horizontal during transport.
Drum adapters fit inside the saddle to hold 30-gallon drums.
Tilt brakes hold your drum in place if chain is released.
Fork pockets allow these lifters to be moved with a forklift.
Bracket kits for fiber and plastic drums bolt onto the side of the drum saddle and clamp to the top and bottom of the drum. They give the lifter enough stability to be used with rimless plastic and fiber drums.
Note: In half-full drums contents shift, which reduces capacity.
Warning: Never use to lift people or items over people.
Chain Grip — Lifters with chain have a ratchet tightener to secure the drum.
| Gripping Method | Chain |
| Style | B |
| Capacity | 55 gal. |
| Diameter | 22" to 23 1/2" |
| Material | Fiber, Steel |
| Full | 800 lb. |
| Half-Full | 500 lb. |
| Tilt Mechanism | Chain Hand Wheel |
| Movement | 360° Swivel |
| Material | Painted Steel |
| Length | 2 3/8" |
| Width | 2" |
| Application | For Lifting |
| Chain Length | 6 ft. |
| Color | Blue |
| Drum Attachment Location | Body |
| Drum Orientation | Horizontal, Vertical |
| Features | Locks on Each Side |
| Weight | 95 lb. |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 842890.0390 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
| Related Products | 30-Gal. Drum Adapters |
