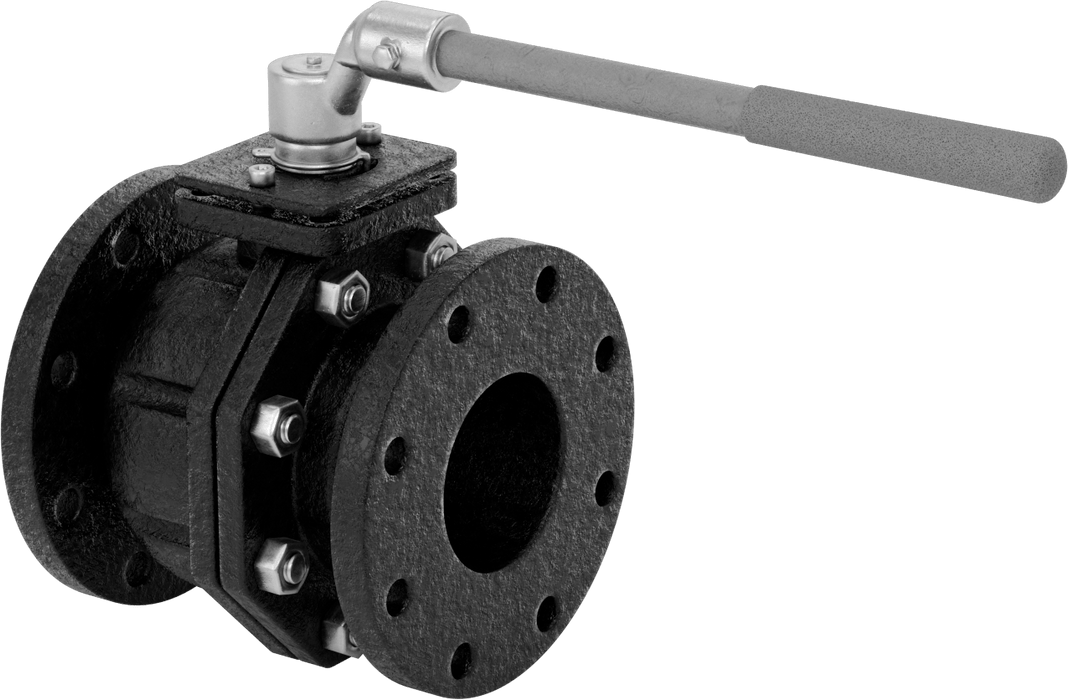

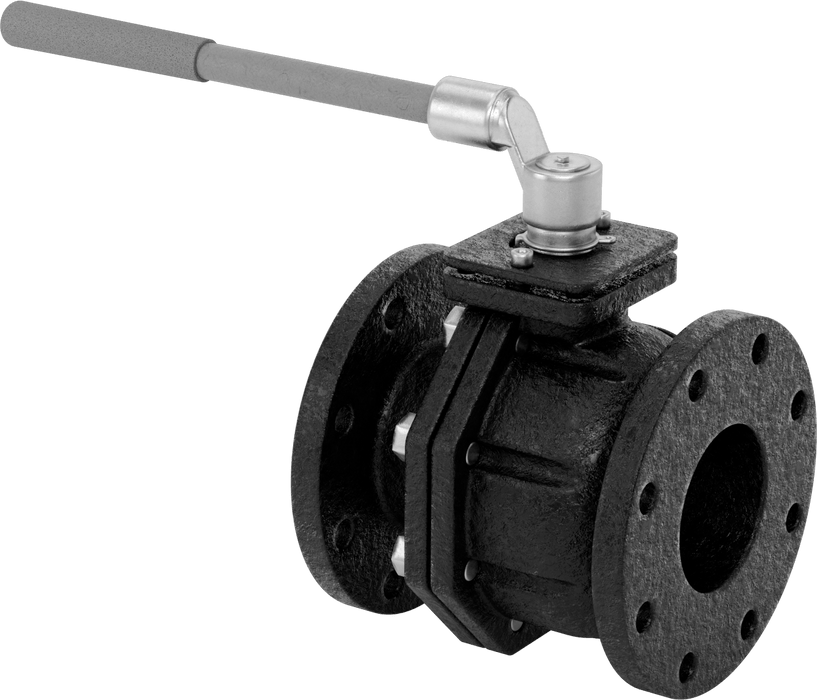

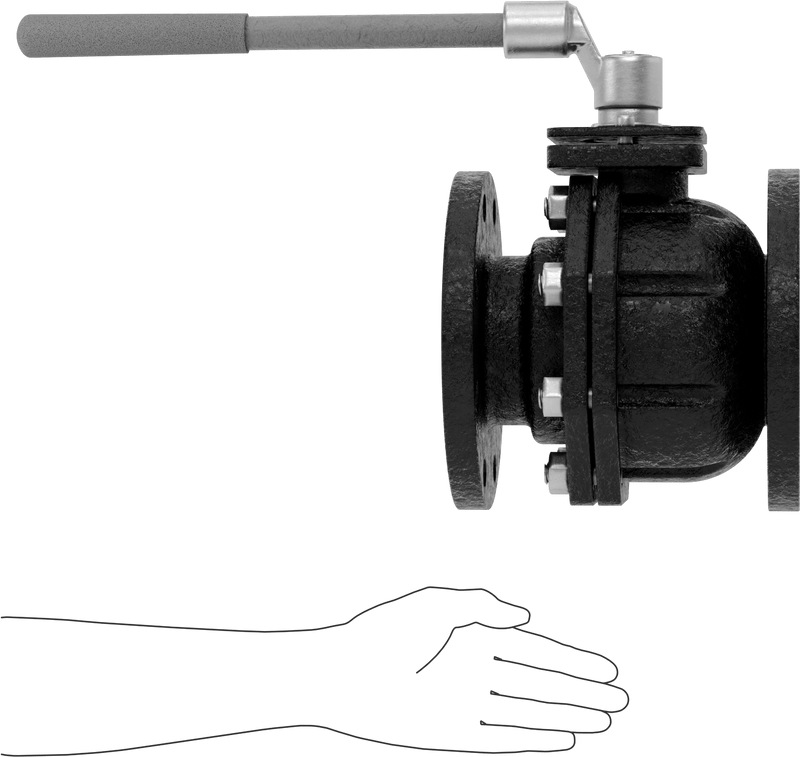

McMaster 3634K58 Flanged On/Off Ball Valve, Cast Iron Body, 4 Pipe Size, Lockable Lever Handle, 200 psi

McMaster 3634K58 Flanged On/Off Ball Valve, Cast Iron Body, 4 Pipe Size, Lockable Lever Handle, 200 psi

UPC: | Harmonization / Schedule B : 8481.80.3025

Country of Origin: India or United States | Shipping Weight: 50 lbs

$1,744.15 - $1,744.15
$1,744.15
$1,744.15 - $1,744.15
$1,744.15

Bolt these valves to ANSI flanges. Their lockable lever handle can be fixed in place using a padlock (not included). All have four mounting holes to install an actuator, so you can convert them from manual to automatic valves.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Warning: Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.

Valve Function On/Off
Valve Type Ball
Activation Manual
Valve Operation Handle
Handle Style Lever
Handle Type Lockable
Connection Type Pipe
Connection Style Flanged
Pipe Size 4
Pressure Class 125
Flange OD 9"
Bolt Circle Diameter 7 1/2"
Number of Mounting Holes 8
Mounting Hole Size 0.75"
Flow Coefficient (Cv) 2,500
Maximum Pressure 200 psi @ 150° F
Maximum Steam Pressure 125 psi @ 215° F
Temperature Range -20° to 350° F
Vacuum Rating 29 in. of Hg
Body Material Cast Iron
Ball Material Cast Iron
Seal Material PTFE Plastic
Seat Material PTFE Plastic
Packing Material PTFE Plastic
Port Type Full
Shape Straight
End-to-End Length 9"
For Maximum Shackle Diameter 1/4"
Height 13 1/2"
Length 21"
Actuator Mounting Hole Thread Size M10 × 1.5 mm
For Use With Water, Oil, Air, Steam
Specifications Met ANSI/ASME B16.10, ANSI/ASME B16.5, MSS-SP-72
RoHS Compliance Not Compliant
REACH Compliance Not Compliant
DFARS Compliance Specialty Metals COTS-Exempt
Country of Origin India or United States
USMCA Qualifying No
Schedule B Number 8481.80.3025
ECCN EAR99
