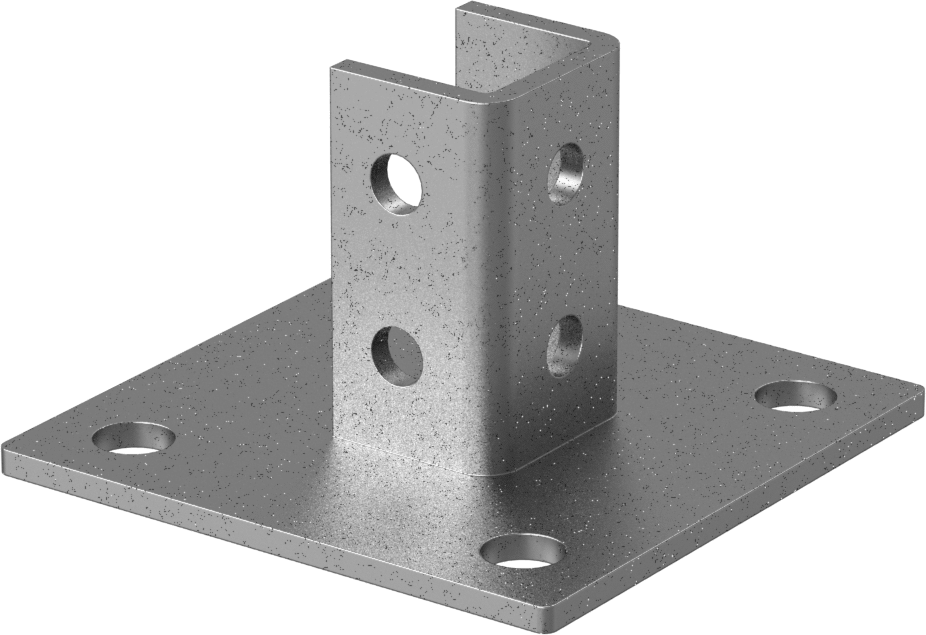

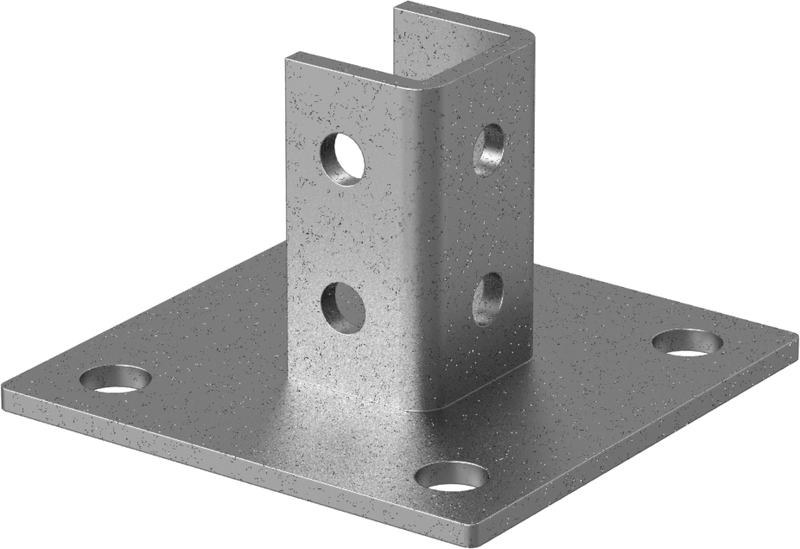

McMaster 33145T18 Strut Channel Floor Mount, for Standard Channel, Straight Post, Galvanized Steel, 6" Long × 6" Wide

McMaster 33145T18 Strut Channel Floor Mount, for Standard Channel, Straight Post, Galvanized Steel, 6" Long × 6" Wide

UPC: | Harmonization / Schedule B : 7301.20.1000

Country of Origin: United States | Shipping Weight: 4 lbs

$129.18 - $129.18
$129.18
$129.18 - $129.18
$129.18

Anchor vertical strut channel to the floor to prevent shifting and tipping. Use these feet to build posts for racks, frames, enclosures, and other structures you need to stay put.

Galvanized Steel — An economical alternative to stainless steel, these withstand wet and outdoor environments. However, they won't hold up to salt water and chemicals.

Framing Type Strut Channel
Strut Channel Framing Component Foot
For Strut Channel Type Standard
Mounting Location Floor
Material Galvanized Steel
Post Orientation Straight
For Channel Height 1 5/8"
For Channel Width 1 5/8"
Base Length 6"
Base Width 6"
Overall Height 3 3/4"
Thickness 1/4"
Mounting Hole Diameter (Floor) 3/4"
Number of Mounting Holes 4
Mounting Hole Center-to-Center 4 1/4"
Channel Hole Diameter 9/16"
Channel Hole Center-to-Center 1 7/8"
Fasteners Included No
Mount Type Bolt Down
Performance Corrosion Resistant
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7301.20.1000
USMCA Qualifying Yes
