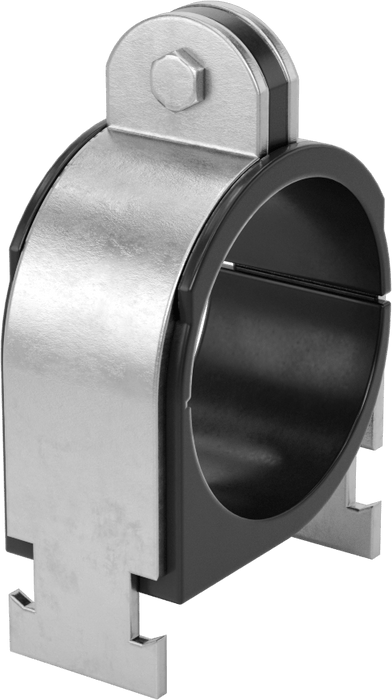

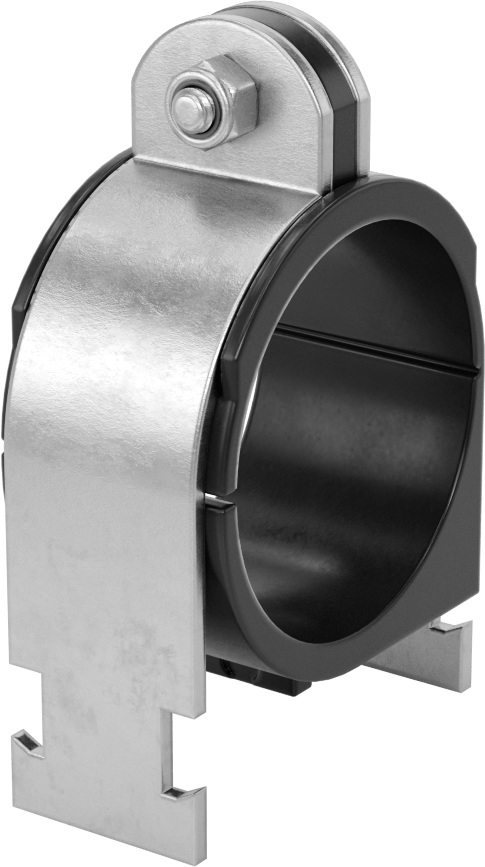

McMaster 32625T74 Strut-Mount Vibration-Damping Routing Clamp with TPE Rubber Cushion, Zinc-Plated Steel, 2-3/8" ID, for 2 Pipe Size

McMaster 32625T74 Strut-Mount Vibration-Damping Routing Clamp with TPE Rubber Cushion, Zinc-Plated Steel, 2-3/8" ID, for 2 Pipe Size

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 0.5 lbs

$58.89 - $58.89
$58.89
$58.89 - $58.89
$58.89

Absorb shock and muffle noise from rattling pipes. The cushion inside these clamps reduces vibration to extend the life of your pipe, tubing, and conduit. Slide clamps into your strut channel and tighten the nut to secure. Since you don’t have to drill into beams and walls, it's easy to reconfigure setups as needed.

Zinc-Plated Steel — The zinc plating protects these clamps from occasional exposure to moisture.

Flammability Rating — UL 2043 certified to generate minimal smoke in the event of a fire. These are a good choice for spaces that could spread smoke through your HVAC system, such as air intakes and ducts.

Clamp Type Strap
Framing Type Strut Channel
Strut Channel Framing Component Routing Clamp
Material Zinc-Plated Steel
Cushion Material TPE
For Pipe Size (Inch) 2 3/8"
For Pipe Size (Metric) 60 mm
For Pipe Size 2
For Channel Width 1 5/8"
Length 2 13/16"
Width 1 1/4"
Height 4 3/8"
Center Height 1 7/16"
Thickness 7/64"
Temperature -50° F to 275° F
Flammability Rating UL 2043
Features Thumb Grip
Cushion Color Black
Fasteners Included Yes
For IMC Conduit Trade Size 2
For Rigid Conduit Trade Size 2
For Strut Channel Type Standard, Stacked, Low Profile, High Profile
Mount Type Slide In
Nut Material Zinc-Plated Steel
Performance Low Smoke, Vibration Damping
Screw Material Zinc-Plated Steel
System of Measurement Inch, Metric
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7326.90.8630
USMCA Qualifying Yes
