McMaster 3249A221 Carbide-Insert Boring Lathe Tool 1/2" Shank Diameter, 4 Piece Set

Name: McMaster 3249A221 Carbide-Insert Boring Lathe Tool 1/2" Shank Diameter, 4 Piece Set
Brand: McMaster-Carr
Price: 291.4 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8207.60.0060

Country of Origin: United States | Shipping Weight: 2.485 lbs

$291.40 - $291.40

$291.40

$291.40 - $291.40

$291.40

These tools come with an insert installed. When one edge of the insert dulls, rotate it to use a sharp edge. When all edges dull, replace the insert rather than the whole tool. Inserts are C5 carbide for general purpose machining.

Cut Type	Boring
Cut Direction	Right Hand
Shank Type	Round
Shank Diameter	1/2"
Number of Pieces	4

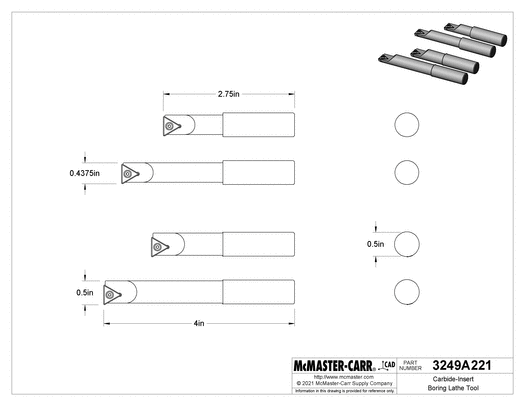

Includes	One 2 3/4" lg. boring tool for 7/16" min. hole dia. and 1 1/4" max. hole dp. One 3" lg. boring tool for 1/2" min. hole dia. and 1 1/2" max. hole dp. One 3 5/8" lg. boring tool for 7/16" min. hole dia. and 2 1/8" max. hole dp. One 4" lg. boring tool for 1/2" min. hole dia. and 2 1/2" max. hole dp. Four TPMT-221 Inserts
Material	Steel
For Use On	Steel
Insert
Code	TPMT-221
Shape	Triangle
Inscribed Circle Diameter (IC)	1/4"
Thickness	1/8"
Tip Radius	1/64"
Nose Angle	60°
Relief Angle	11°
Material	C5 Carbide
Holding Method	Hex Screw
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	Not Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	Yes
Schedule B	820760.0060
ECCN	EAR99
