McMaster 3177T51 Snug-Fit Vibration-Damping Loop Clamp, 321 Stainless Steel with Neoprene Cushion, 3/8" ID, Pack of 5

McMaster 3177T51 Snug-Fit Vibration-Damping Loop Clamp, 321 Stainless Steel with Neoprene Cushion, 3/8" ID, Pack of 5

UPC: | Harmonization / Schedule B : 7326.90.8695

Country of Origin: United States | Shipping Weight: 0.15 lbs

$47.18 - $47.18
$47.18
$47.18 - $47.18
$47.18

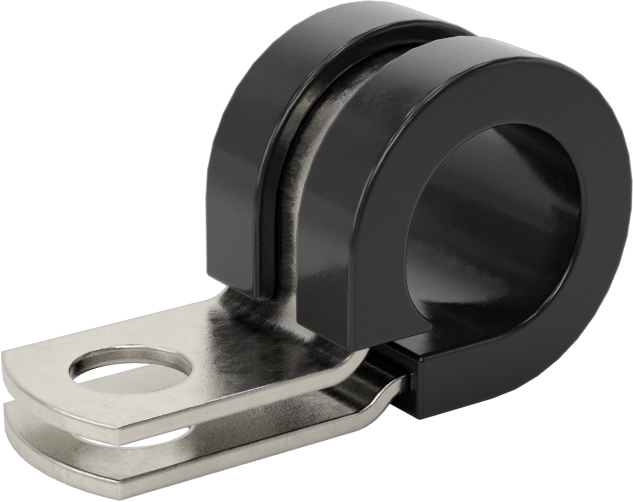

A molded cushion reduces vibration and wear from clamp edges, plus provides a tighter fit around material than standard vibration-damping loop clamps. Clamps surround lines completely while holding them close to the mounting surface.

321 Stainless Steel — 321 stainless steel clamps have excellent corrosion resistance.

Neoprene Cushion — Neoprene cushions are for use in environments where clamps are exposed to oil and ozone.

Material 321 Stainless Steel
Cushion Material Neoprene
ID 3/8", 10 mm
Cushion Color Black
Center-to-Center Length 9/16"
Length 1 1/8"
Width 3/8"
Height 5/8"
Thickness 1/32"
Pack Size 5
Fasteners Included No
Hole Diameter 13/64"
Temperature Range -40° F to 210° F
For Use Outdoors Yes
Military Specification MS21919
For Copper Tube Size 1/4
For Number of Lines 1
Mount Type Screw On
Number of Mounting Points 1
Performance Chemical Resistant, Corrosion Resistant, Snug Fit, Vibration Damping
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7326.90.8695
USMCA Qualifying Yes
