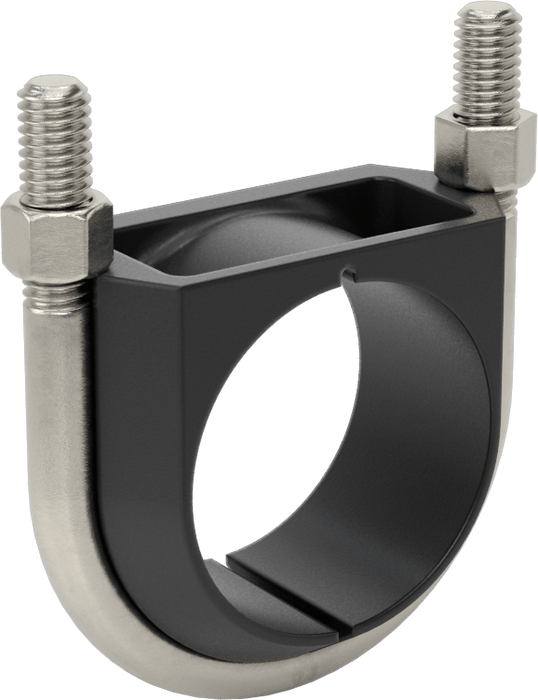

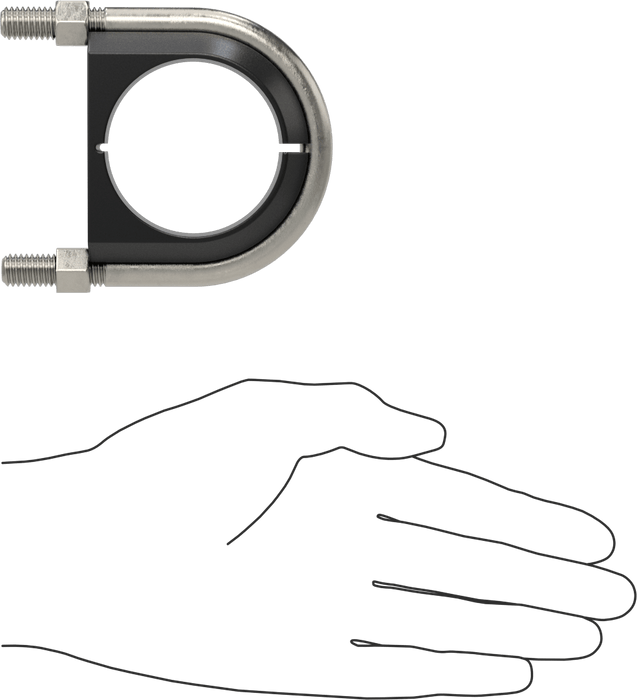

McMaster 3176T69 Vibration-Damping U-Bolt, 316 Stainless Steel, 3/8"-16 Thread, 2" ID, with Plastic Cushion, 1200 lb

McMaster 3176T69 Vibration-Damping U-Bolt, 316 Stainless Steel, 3/8"-16 Thread, 2" ID, with Plastic Cushion, 1200 lb

UPC: | Harmonization / Schedule B : 7318.15.2000

Country of Origin: United States | Shipping Weight: 0.4 lbs

$84.73 - $84.73
$84.73
$84.73 - $84.73
$84.73

Reduce vibration and noise in your lines—a plastic cushion tightly grips pipe, tubing, and conduit to prevent movement. All have nylon-insert locknuts, which grip the thread to resist loosening without damaging threads. Use to support heavy pipe, tube, and conduit from ceilings, walls, and poles.

316 Stainless Steel — 316 stainless steel U-bolts have excellent corrosion and chemical resistance.

Performance Vibration Damping
Cushion Material Plastic
Cushion Color Black
Includes Mounting Plate No
Material 316 Stainless Steel
Thread Size 3/8"-16
For Pipe Size (Inch) 2"
For Pipe Size (Metric) 51 mm
For Pipe Size 1 1/2
Height 3 3/16"
Thread Length 1 3/16"
Weight Capacity 1,200 lb.
Center-to-Center 2 13/16"
Number of Nuts Included 2
Temperature Range -50° F to 275° F
For IMC Conduit Trade Size 1 1/2
For Rigid Conduit Trade Size 1 1/2
Leg Diameter 3/8"
Locking Type Nylon Insert
Mount Type Threaded
Nut Type Locknut
Nut Material 316 Stainless Steel
Specifications Met ANSI/MSS SP-58 Type 24, ANSI/MSS SP-58 Type 59
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7318.15.2000
USMCA Qualifying Yes
