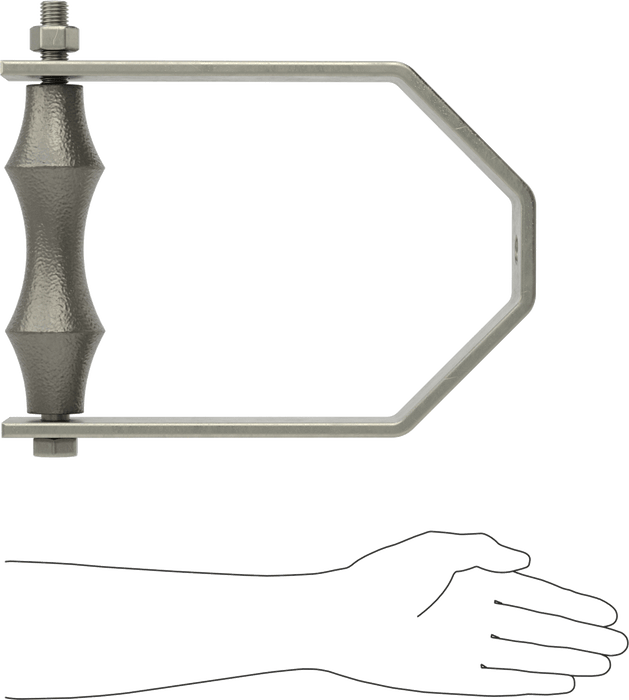

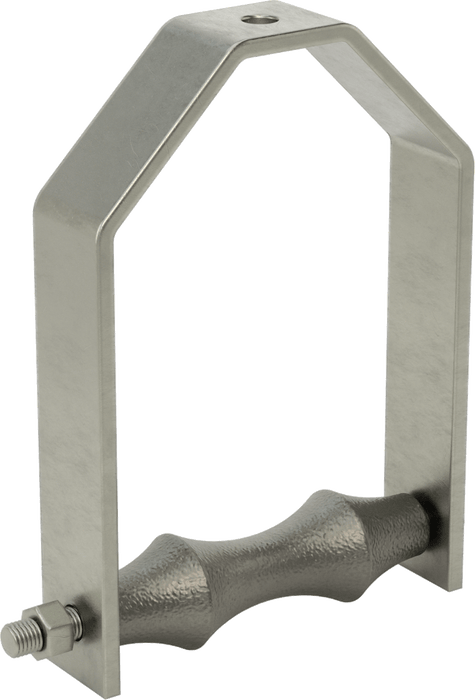

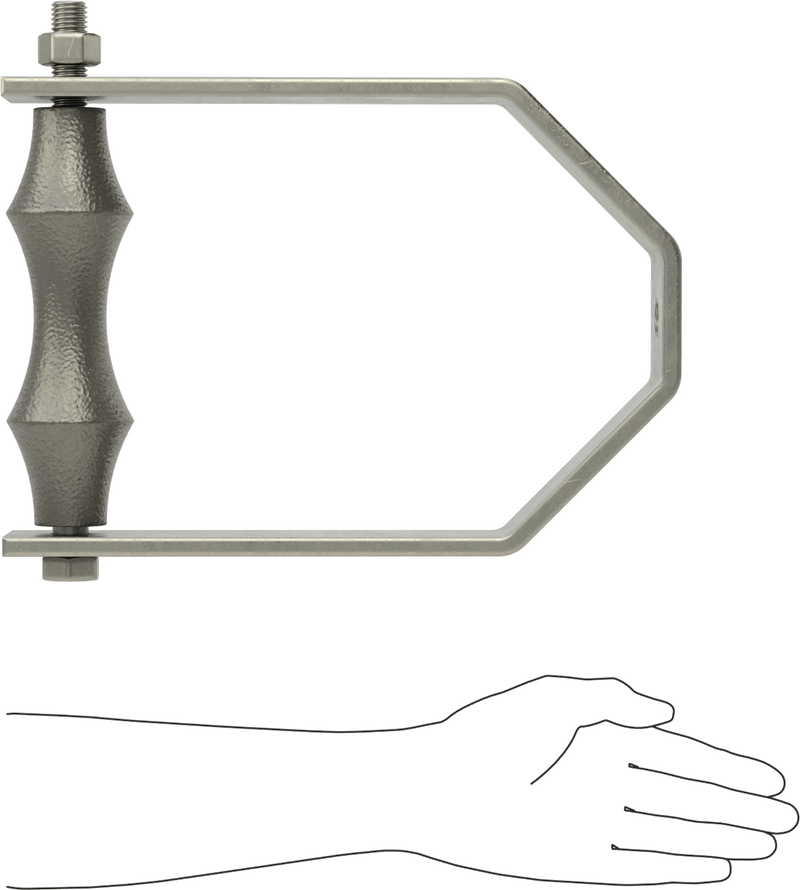

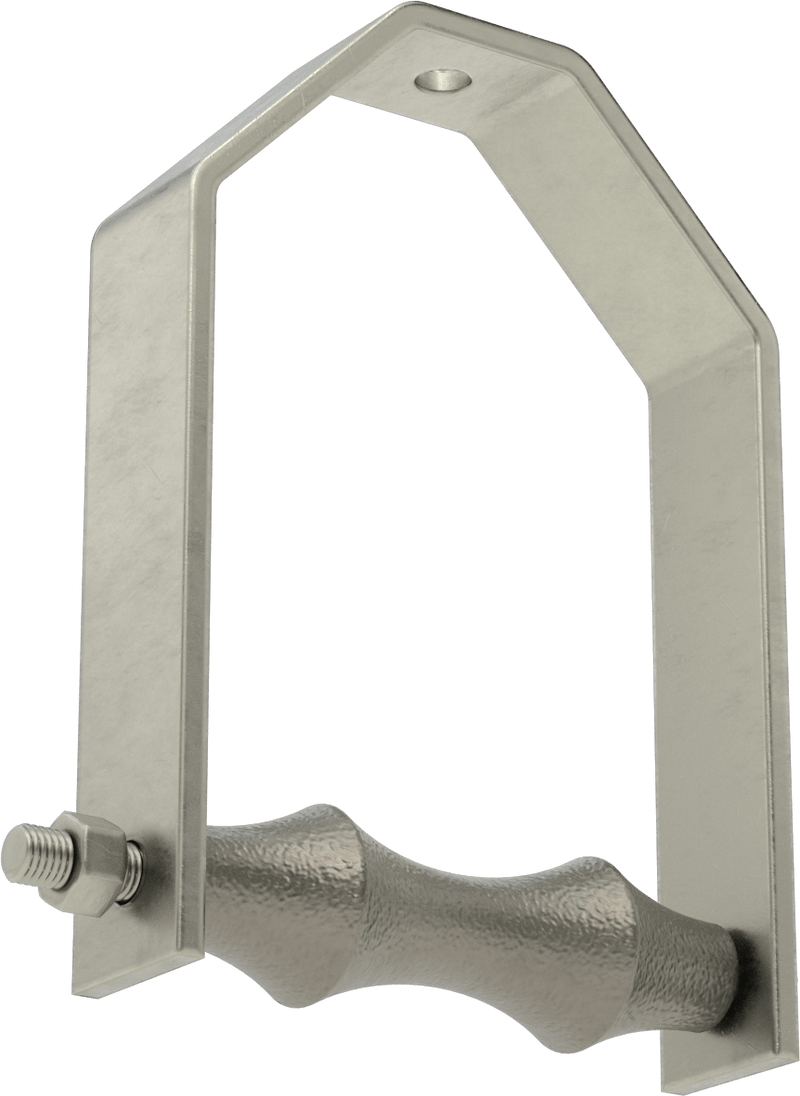

McMaster 3084T38 Threaded-Rod-Mount Roller Loop Hanger, 8-5/8" ID, for 8 Pipe Size, 780 lb

McMaster 3084T38 Threaded-Rod-Mount Roller Loop Hanger, 8-5/8" ID, for 8 Pipe Size, 780 lb

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 6 lbs

$264.18 - $264.18
$264.18
$264.18 - $264.18
$264.18

Compensate for linear movement as pipes expand and contract. The roller turns to accommodate motion as pipes carry fluids and gases at fluctuating temperatures or pressures. Attach to the ceiling with a threaded rod and nut (sold separately) or other fastener.

Support Type Roller
Hanger Type Loop
Material Steel
For Pipe Size (Inch) 8 5/8"
For Pipe Size (Metric) 219 mm
For Pipe Size 8
For Thread Size 3/4"-10
Weight Capacity 780 lb.
Mounting Hole Diameter 13/16"
Number of Nuts Required 1
Closure Method Bolt
Height 12 5/8"
Length 12"
Load Location Bottom
Mount Type Through Hole
Mounting Fasteners Included No
Mounting Location Threaded Rod, Overhead
Roller Material Cast Iron
Thickness 13/32"
Threaded Rod Included No
Width 2 1/2"
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance Not Compliant
RoHS Compliance Not Compliant
Schedule B Number 7326.90.8630
USMCA Qualifying No
