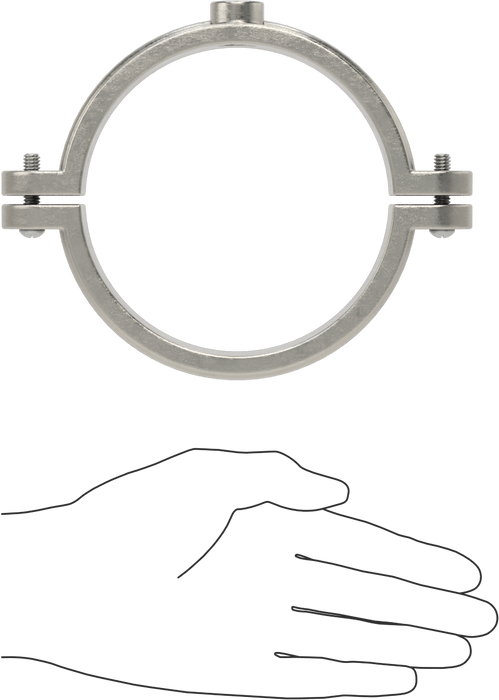

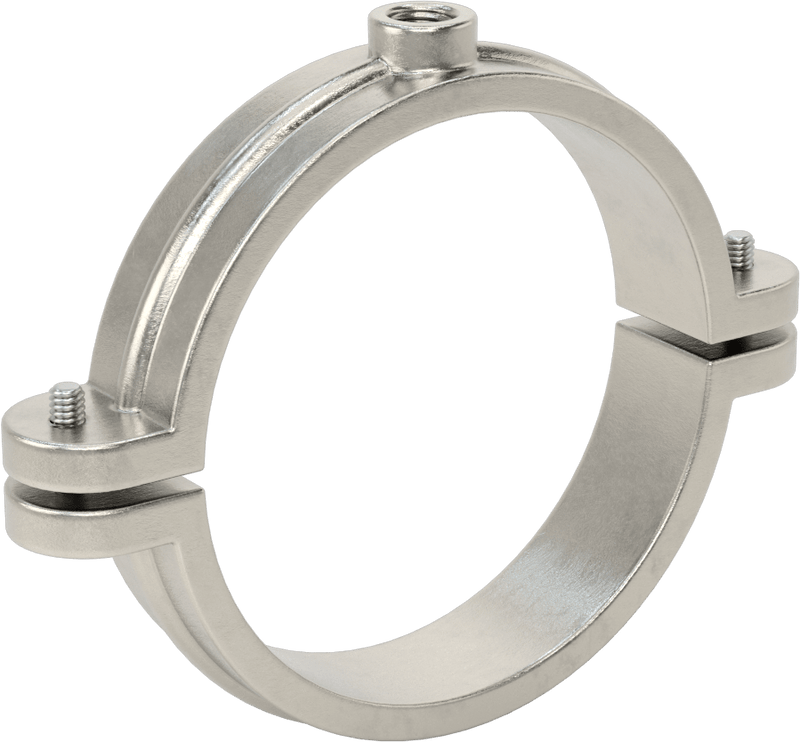

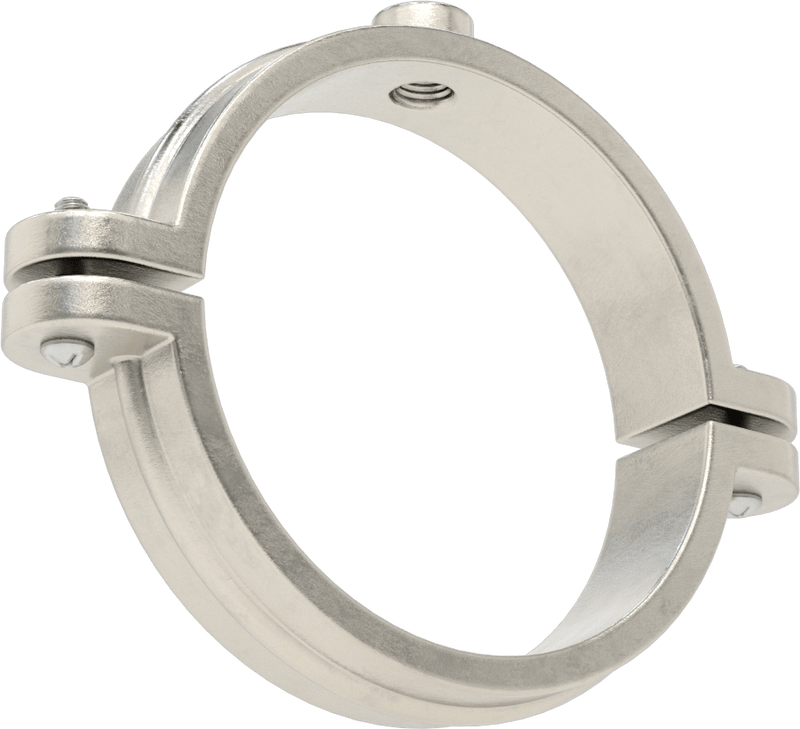

McMaster 3023T91 Snug-Hold Threaded-Rod-Mount Clamping Hanger, 304 Stainless Steel, 4-1/2" ID

McMaster 3023T91 Snug-Hold Threaded-Rod-Mount Clamping Hanger, 304 Stainless Steel, 4-1/2" ID

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: China | Shipping Weight: 1 lbs

$370.49 - $370.49
$370.49
$370.49 - $370.49
$370.49

Place pipe between the hanger halves and adjust the side bolts for a tighter fit than other pipe hangers. When closed, the split ring forms a complete circle around the pipe for 360° support with no gaps. Mount by twisting a threaded rod through the threaded hole.

Hanger Type Clamp
Material 304 Stainless Steel
For Inside Diameter (Inch) 4 1/2"
For Inside Diameter (Metric) 114 mm
For Pipe Size 4
For EMT Conduit 4
For IMC Conduit 4
For Rigid Conduit 4
For Thread Size 1/2"-13
Weight Capacity 300 lb.
Mounting Hole Diameter 1/2"
Closure Method Bolt
Construction Two Piece
Height 5 1/2"
Length 6 11/16"
Width 1 3/16"
Load Location Top, Bottom
Military Specification Fed. Spec. WW-H-171 Type 25
Mount Type Through Hole
Mounting Location Threaded Rod, Overhead
Performance Snug Fit, Corrosion Resistant
Specifications Met ANSI/MSS SP-58 Type 12
Threaded Rod Included No
Country of Origin China
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 732690.8630
USMCA Qualifying No
