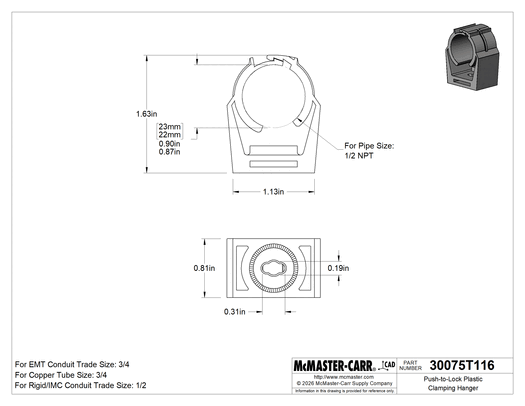

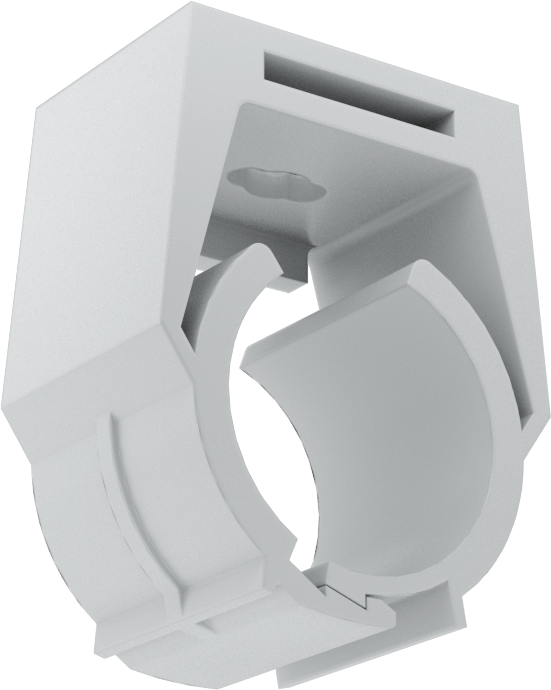

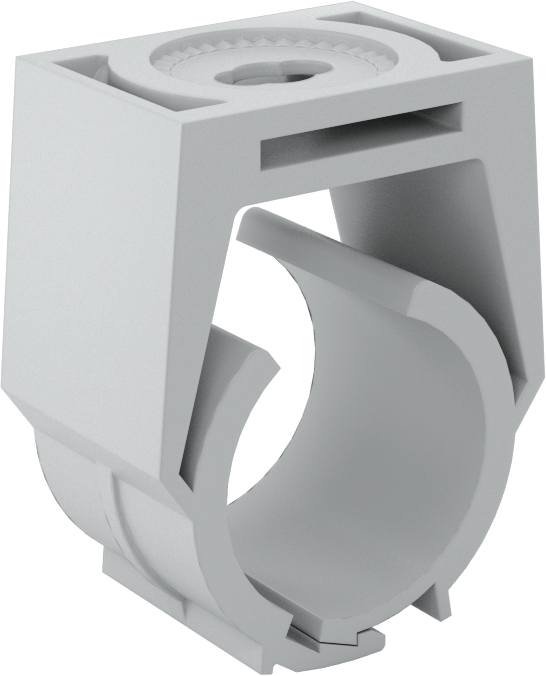

McMaster 30075T116 Push-to-Lock Nylon Plastic Clamping Hanger, Pack of 5, 13/16" to 7/8" ID

McMaster 30075T116 Push-to-Lock Nylon Plastic Clamping Hanger, Pack of 5, 13/16" to 7/8" ID

UPC: | Harmonization / Schedule B : 3926.90.9988

Country of Origin: United States | Shipping Weight: 0.1 lbs

$51.16 - $51.16
$51.16
$51.16 - $51.16
$51.16

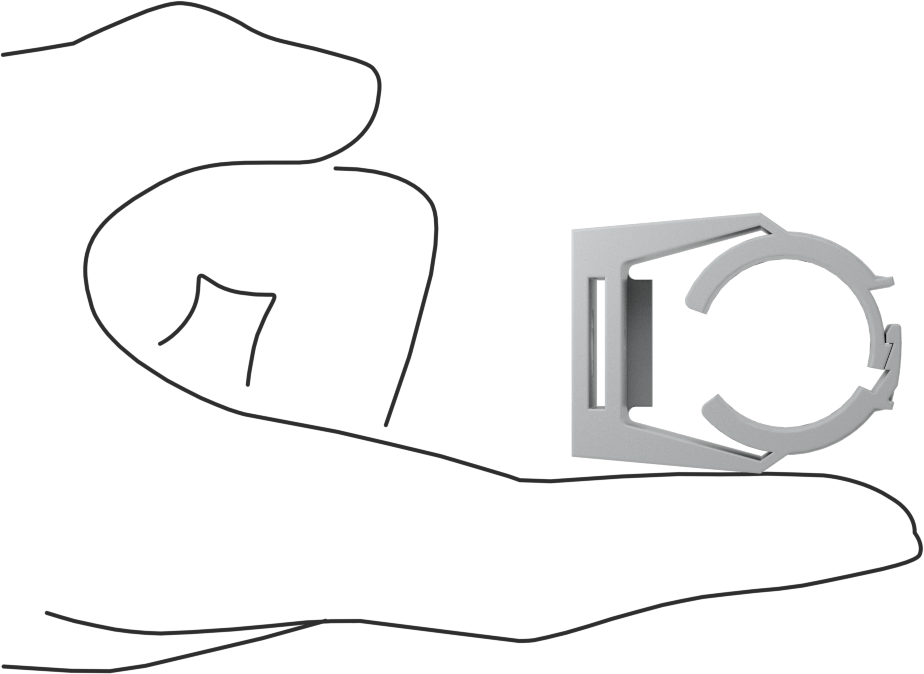

Lock pipe, tube, and conduit into place in a single step. Press material into the open hanger, then close by hand—no tools or adjustments needed. Mount with a fastener through the unthreaded hole.

Nylon — Lightweight, nonconductive, and naturally rust resistant. The plastic won't cause corrosion on metal parts. It does swell and weaken when exposed to moisture, so these are best for dry environments.

Hanger Type Clamp
Mounting Location Threaded Rod, Strut Channel, Overhead, Wall
Material Nylon
For Inside Diameter (Inch) 13/16" to 7/8"
For Inside Diameter (Metric) 22 mm to 23 mm
For Pipe Size 1/2
For Copper Tube Size 3/4
For EMT Conduit 3/4
For IMC Conduit 1/2
For Rigid Conduit 1/2
Weight Capacity 200 lb.
Closure Method Push to Close, Snap
Color Gray
Height 1 5/8"
Length 1 1/8"
Width 13/16"
Load Location Top, Bottom
Mount Type Through Hole
Mounting Fasteners Included No
Performance Adjustable
Specifications Met UL 2239
Temperature Range 20° F to 180° F
Pack Size 5
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 392690.9988
USMCA Qualifying Yes
