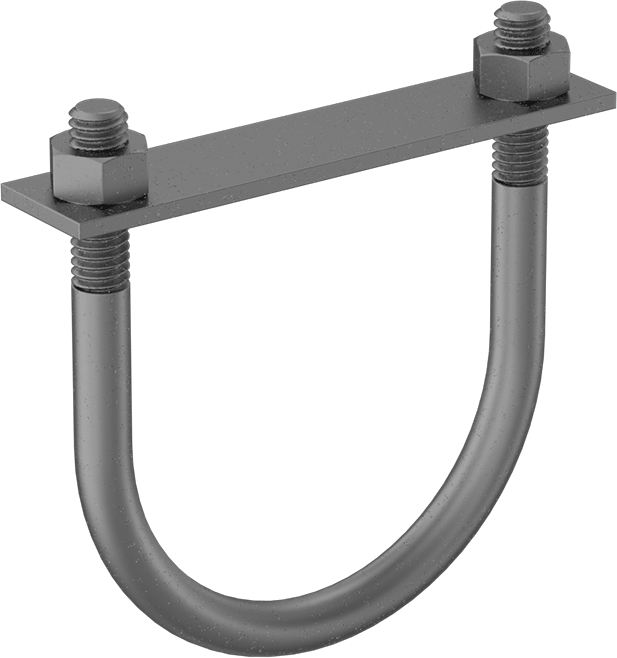

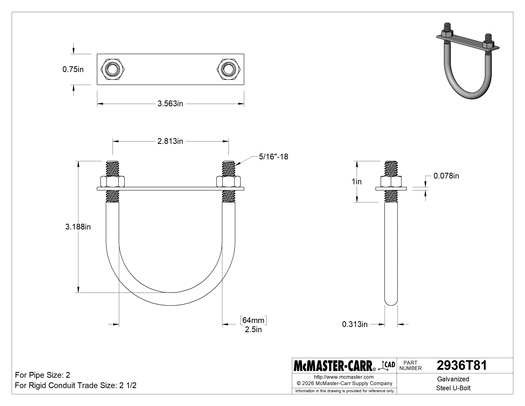

McMaster 2936T81 Galvanized Steel U-Bolt, with Mounting Plate, 5/16"-18 Thread Size, 2-1/2" ID

McMaster 2936T81 Galvanized Steel U-Bolt, with Mounting Plate, 5/16"-18 Thread Size, 2-1/2" ID

UPC: | Harmonization / Schedule B : 7318.15.2000

Country of Origin: United States | Shipping Weight: 0.05 lbs

$40.44 - $40.44
$40.44
$40.44 - $40.44
$40.44

A mounting plate provides a more secure hold at the mounting surface. Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles.

Galvanized Steel — Galvanized steel U-bolts have better corrosion resistance than black-oxide and zinc-plated steel U-bolts.

Includes Mounting Plate Yes
Material Galvanized Steel
Thread Size 5/16"-18
Inch 2.5"
Metric 64 mm
For Pipe Size 2
Height 3 3/16"
Thread Length 1"
Weight Capacity 600 lb.
Center-to-Center 2 13/16"
Number Included 1
Material Galvanized Steel
Length 3 9/16"
Width 3/4"
Thickness 3/32"
Number of Nuts Included 2
For Rigid Conduit Trade Size 2
Leg Diameter 5/16"
Mount Type Threaded
Type Hex
Material Steel
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 731815.2000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
