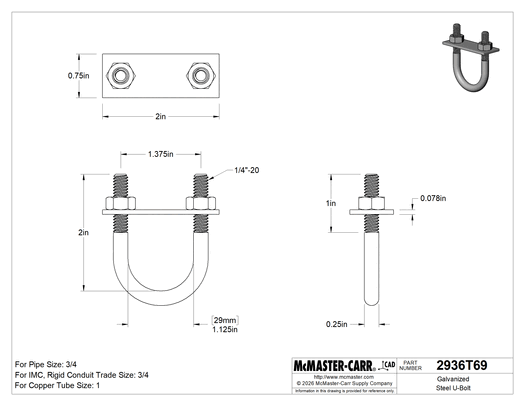

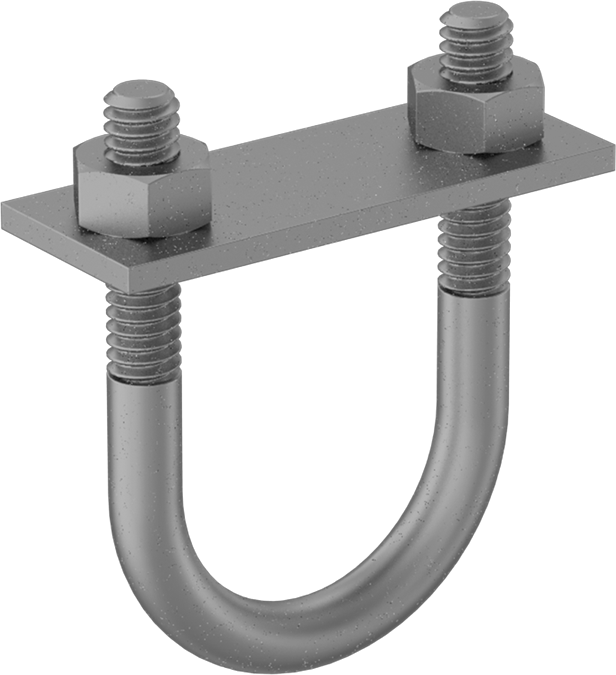

McMaster 2936T69 Galvanized Steel U-Bolt, with Mounting Plate, 1/4"-20 Thread Size, 1-1/8" ID
McMaster 2936T69 Galvanized Steel U-Bolt, with Mounting Plate, 1/4"-20 Thread Size, 1-1/8" ID
McMaster 2936T69 Galvanized Steel U-Bolt, with Mounting Plate, 1/4"-20 Thread Size, 1-1/8" ID
McMaster 2936T69 Galvanized Steel U-Bolt, with Mounting Plate, 1/4"-20 Thread Size, 1-1/8" ID
McMaster 2936T69 Galvanized Steel U-Bolt, with Mounting Plate, 1/4"-20 Thread Size, 1-1/8" ID
McMaster 2936T69 Galvanized Steel U-Bolt, with Mounting Plate, 1/4"-20 Thread Size, 1-1/8" ID

McMaster 2936T69 Galvanized Steel U-Bolt, with Mounting Plate, 1/4"-20 Thread Size, 1-1/8" ID

UPC: | Harmonization / Schedule B : 7318.15.2000

Country of Origin: United States | Shipping Weight: 0.1 lbs

$38.80 - $38.80
$38.80
$38.80 - $38.80
$38.80

A mounting plate provides a more secure hold at the mounting surface. Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles.

Galvanized Steel — Galvanized steel U-bolts have better corrosion resistance than black-oxide and zinc-plated steel U-bolts.

Includes Mounting Plate Yes
Material Galvanized Steel
Thread Size 1/4"-20
Inch 1.125"
Metric 29 mm
For Pipe Size 3/4
Height 2"
Thread Length 1"
Weight Capacity 425 lb.
Center-to-Center 1 3/8"
Number Included 1
Material Galvanized Steel
Length 2"
Width 3/4"
Thickness 3/32"
Number of Nuts Included 2
For Copper Tube Size 1
For IMC Conduit Trade Size 3/4
For Rigid Conduit Trade Size 3/4
Leg Diameter 1/4"
Mount Type Threaded
Type Hex
Material Steel
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 731815.2000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
