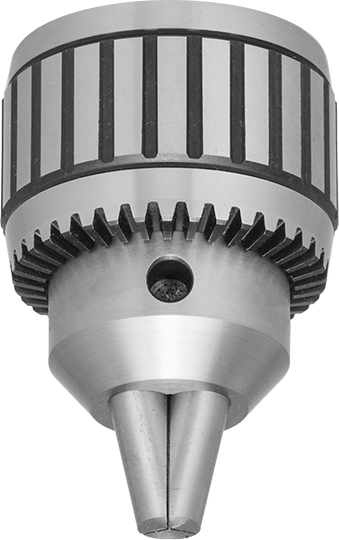

McMaster 2815A13 Jacobs Taper-Mount Keyed Drill Chuck, Number 3, for 0.04" to 1/2" Bit Shank Size, Model 14N

UPC: | Harmonization / Schedule B : 8466.10.0175

Country of Origin: China | Shipping Weight: 2.40 lb

Original price $576.87 - Original price $576.87
Original price
$576.87
$576.87 - $576.87
Current price $576.87

Secure bits into your drill press, milling machine, or lathe. These chucks are keyed, so they grip bits tightly to prevent slipping under heavy loads. Use the included key to tighten and loosen the jaws. Attach these chucks to your machine with a Jacobs taper arbor. To maximize grip and minimize runout, choose a chuck where your drill bit diameter falls in the middle of the bit shank size range.

Jacobs — Jacobs chucks are the most widely used drill chucks.

Ball Bearing — Chucks with ball bearings produce less friction for the best grip on bits. Use them for tight tolerance drilling to make accurate holes. They're also known as super chucks.

Heavy Duty — Heavy duty chucks give you the rigidity and heft needed for high-torque drilling in hardened metal. Their extra mass means they resist vibration and fluctuating cutting forces to keep your bits cutting straight.

Manufacturer Jacobs
Manufacturer Model Number 14N
Chuck Type Keyed
Bearing Type Ball
Duty Rating Heavy
Machine Taper Number Jacobs 3
Drill Chuck Mount Type Jacobs Taper
For Bit Shank Size 0.04" to 1/2" (1 mm to 13 mm)
For Bit Shank Type Hex, Round
Total Indicated Runout (TIR) Accuracy 0.003"
Weight 2.4 lb.
Chuck Key Included Yes (Number K3)
Jaw Material Steel
Body Material Steel
Arbor Required / Included Required: Yes / Included: No
For Use With Drill Presses, Lathes, Milling Machines
For Tool Drive Direction Clockwise, Counterclockwise
Country of Origin China
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
Schedule B Number 846610.0175
USMCA Qualifying No
