No. 10, No. 11, No. 12, No. 14, No. 15, No. 16, No. 17, 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", M5, M6, M7, M8, M10, M12, M14, M16

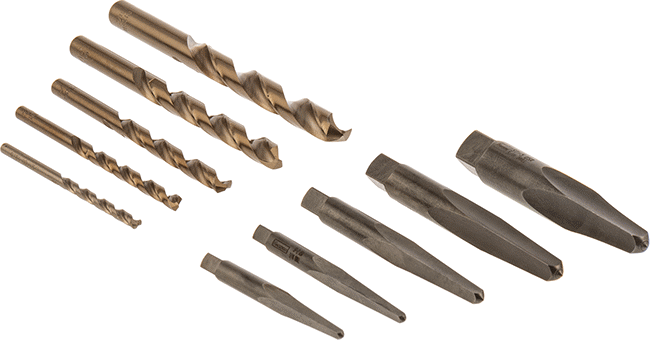

The tapered wedge shape of these extractors won’t expand the broken part, making it easier to remove. Sets include the matching drill bit sizes. After drilling, tap in with a hammer and turn. The part will back out without damaging the threads around it.
| For Thread Direction |
Right Hand, Left Hand |
| Drill Bit Flute Direction |
Right Hand |
| Drill Bit Material |
Cobalt Steel |
| Number of Extractors Included |
5 |
| Thread Diameter |
0.19" to 0.63" |
| Size |
No. 10, No. 11, No. 12, No. 14, No. 15, No. 16, No. 17, 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", M5, M6, M7, M8, M10, M12, M14, M16 |
| For Pipe Size |
1/8, 1/4, 3/8 |
| Overall Length |
2", 2 3/8", 2 3/4", 3", 3 3/8" |
| Turns With |
Wrench |
| Material |
Steel |
| Number of Drill Bits Included |
5 |
| Drill Bit Size |
9/64", 3/16", 15/64", 5/16", 3/8" |
| Flute Type |
Straight |
| For Extracting |
Screws and Bolts, Threaded Studs, Threaded Rods, Pipe |
| Number of Pieces |
10 |
| Sold As |
Set |
| Use with Drill Bit Size |
9/64", 3/16", 15/64", 5/16", 3/8" |
| Country of Origin |
United States |
| DFARS Compliance |
Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) |
EAR99 |
| REACH Compliance |
REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance |
Not Compliant |
| Schedule B Number |
820559.9000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying |
No |
