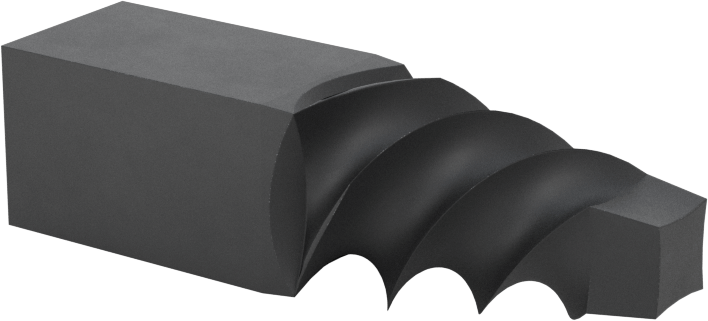

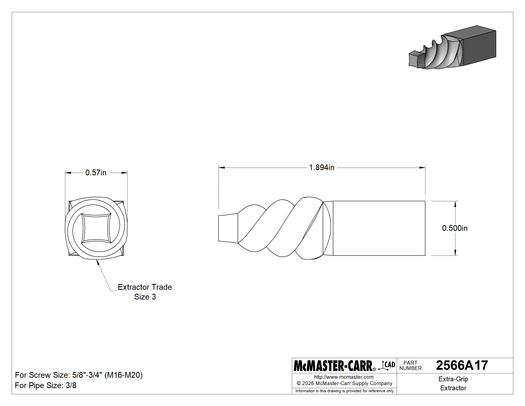

McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3
McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3
McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3
McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3
McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3
McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3
McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3
McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3

McMaster 2566A17 Extra-Grip Extractor, for Right-Hand Threads, Trade Size 3

UPC: | Harmonization / Schedule B : 8205.59.9000

Country of Origin: United States | Shipping Weight: 0.1 lbs

$74.62 - $74.62
$74.62
$74.62 - $74.62
$74.62

Deep flutes provide a strong grip and reduced expansion of the part you need to extract. Drill a hole in the broken part, insert the extractor, and turn. The part will back out without damaging the threads around it.

For Thread Direction Right Hand
Extractor Trade Size 3
Thread Diameter 0.63" to 0.78"
Size 5/8" to 3/4", M16 to M20
For Pipe Size 3/8
Use with Drill Bit Size 13/32"
Overall Length 1 3/4"
Flute Type Spiral
Turns With Wrench
Material Steel
For Extracting Screws and Bolts, Threaded Studs, Threaded Rods, Pipe
Sold As Individual
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance Not Compliant
RoHS Compliance Not Compliant
Schedule B Number 820559.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
