McMaster 2563A33 Extractor Set, Sizes 5, 5-1/4, 6-3/8, 7-1/2, 8, 9

McMaster 2563A33 Extractor Set, Sizes 5, 5-1/4, 6-3/8, 7-1/2, 8, 9

UPC: | Harmonization / Schedule B : 8207.90.7570

Country of Origin: United States | Shipping Weight: 3 lbs

$289.09 - $289.09
$289.09
$289.09 - $289.09
$289.09

Drill a hole in the broken part, insert the extractor, and turn. The part will back out without damaging the threads around it.

For Thread Direction Right Hand
Number of Extractors Included 6
Extractor Trade Size 5, 5 1/4, 6 3/8, 7 1/2, 8, 9
For Screw Thread Diameter 0.56" to 2.12"
For Screw Size 9/16", 5/8", 11/16", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8", 1 1/2", 1 5/8", 1 3/4", 1 7/8", 2", M14, M16, M18, M20, M22, M24, M26, M27, M30, M33, M36, M40, M42, M48
For Pipe Size 1/8, 1/4, 3/8, 1/2, 3/4, 1
Use with Drill Bit Size 17/64", 23/64", 31/64", 39/64", 13/16", 1 1/16"
Overall Length 3 3/8", 3 3/4", 4 1/8", 4 3/8", 4 5/8"

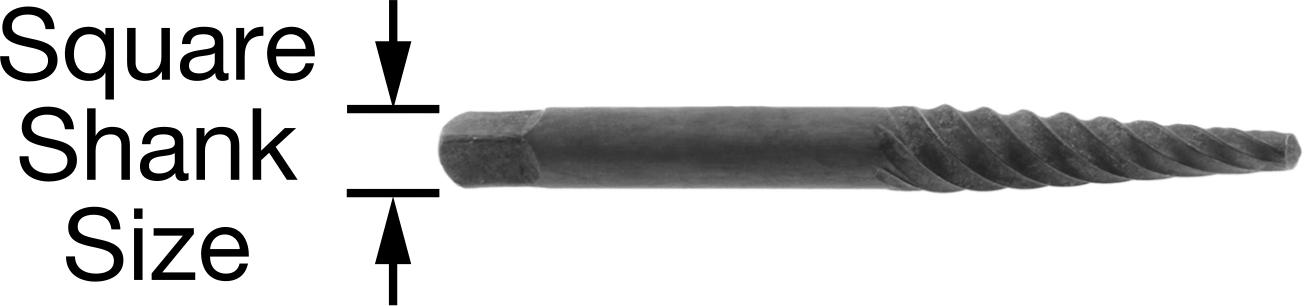

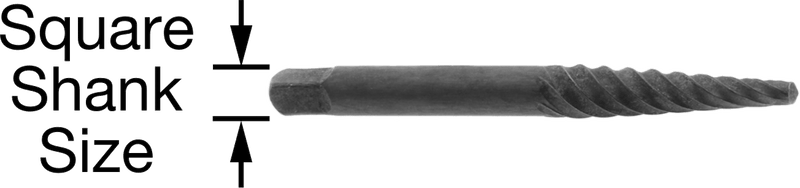

Square Shank Size 0.343", 0.398", 0.512", 0.656", 0.75", 0.89"
Turns With Wrench, Tap Wrench
Material Steel
Container Type Vinyl Pouch
Flute Type Spiral
For Extracting Screws and Bolts, Threaded Studs, Threaded Rods, Pipe
Number of Pieces 6
Sold As Set
Country of Origin United States
Schedule B Number 820790.7570
USMCA Qualifying No
