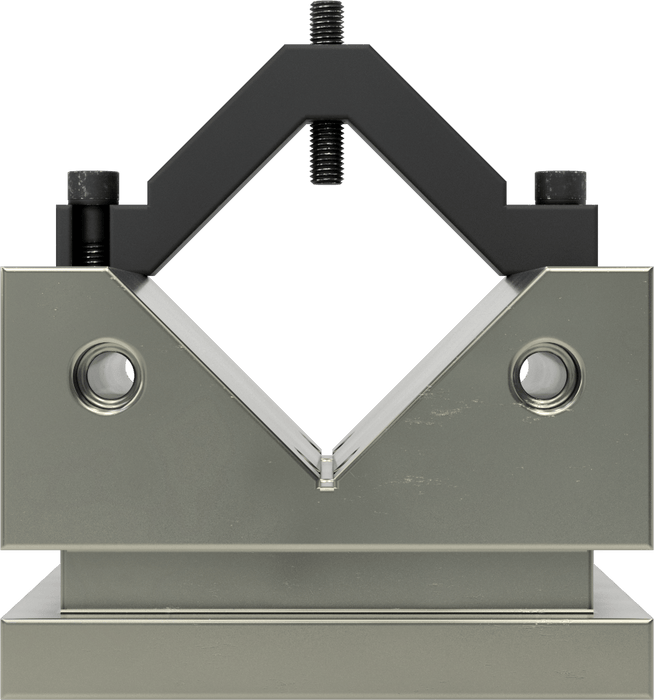

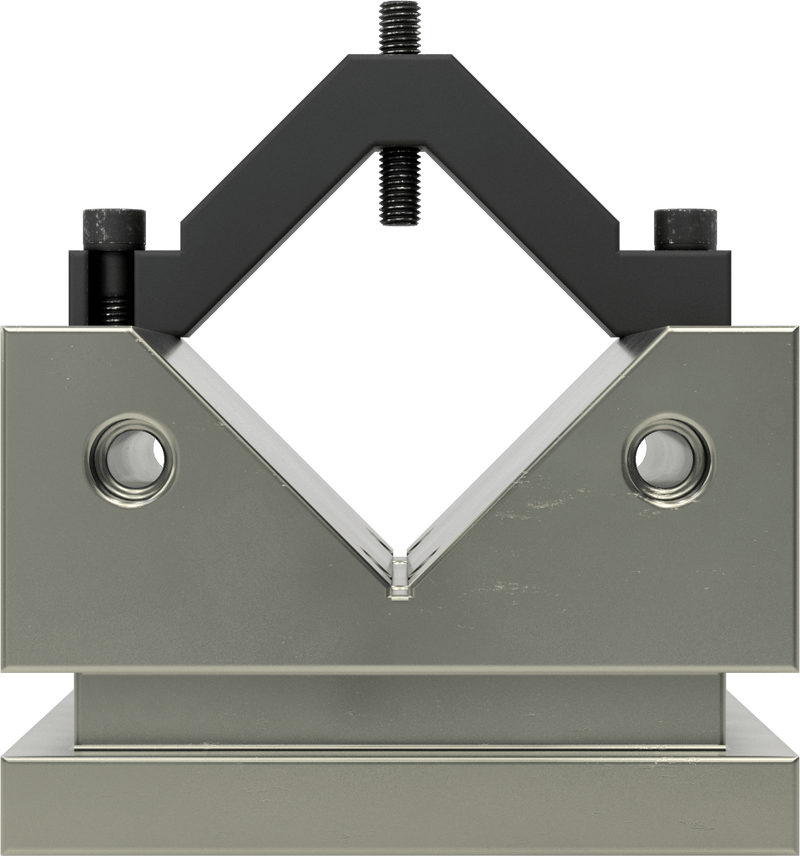

McMaster 2361A64 V-Block, Hardened, for 4-3/8" Maximum Workpiece Diameter

UPC: | Harmonization / Schedule B : 8466.20.8040

Country of Origin: United States | Shipping Weight: 33 lb

Original price $2,324.51 - Original price $2,324.51
Original price
$2,324.51
$2,324.51 - $2,324.51
Current price $2,324.51

Precision ground to tight tolerances, these V-blocks help you accurately align and support round workpieces.

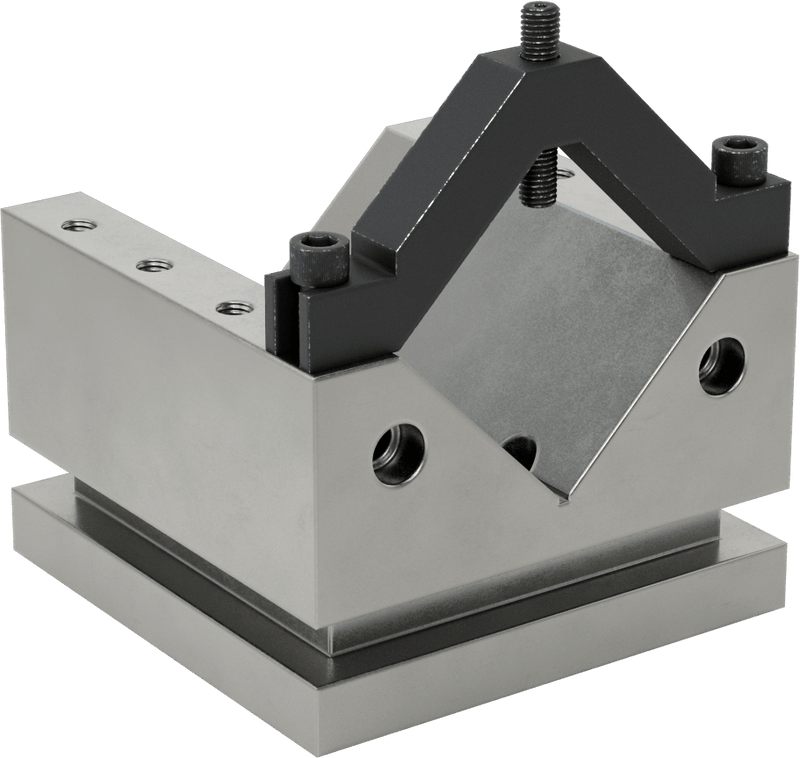

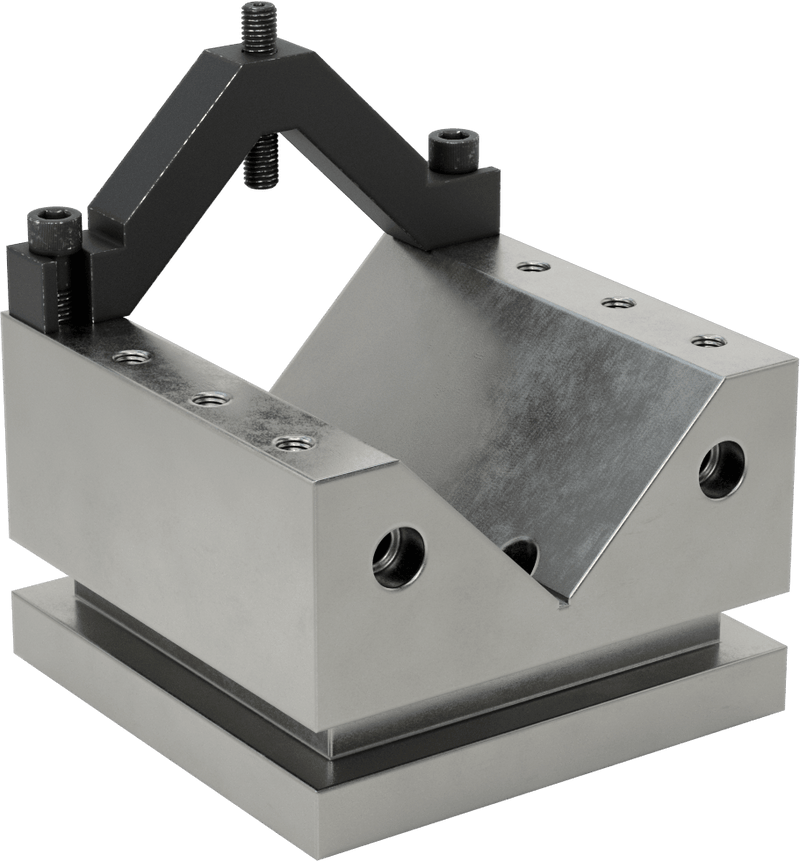

V-Blocks with Clamp — Choose a block with a clamp to secure your workpiece in place. The clamp is removable and shaped to fit inside the vee, so you can face it up or down to hold a variety of workpieces. Since it's flush with the block faces, you can position the blocks on any of their sides.

Hardened Steel — Hardened steel blocks are more durable and wear resistant than steel blocks, so they'll stay precise even with heavy use.

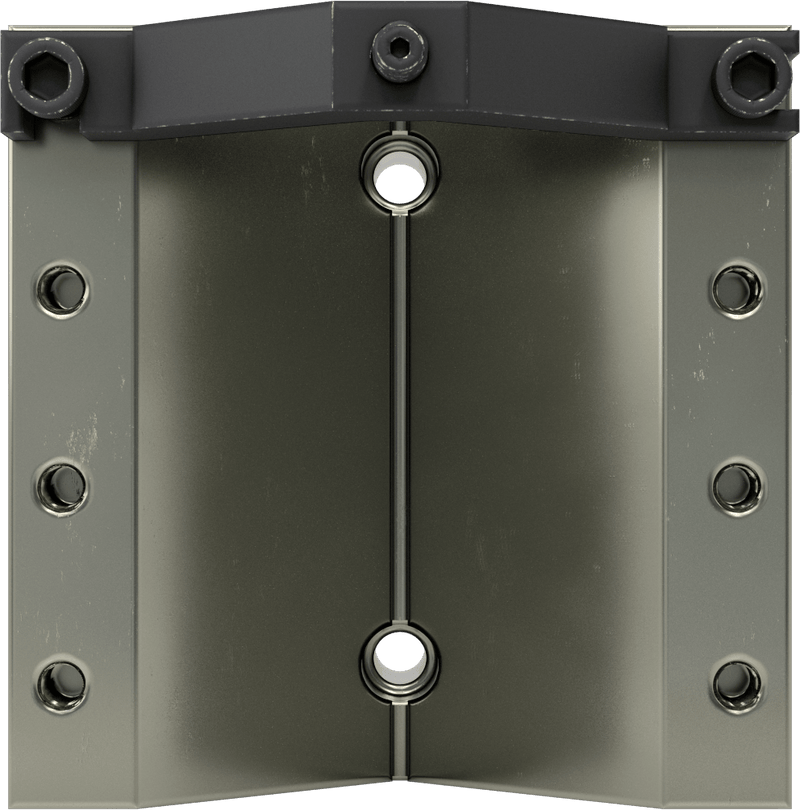

Style C — Style C have mounting slots near their base, so you can attach them to work surfaces with setup clamps (not included). They have a continuous slot, so you can clamp any of the sides.

Sold As Individual
V-Block Type With Clamp
Material Hardened Steel
Style C

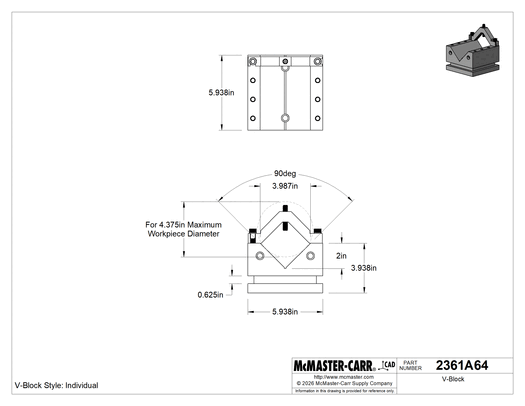

Minimum Workpiece Diameter 5/32"
Maximum Workpiece Diameter 4 3/8"
Length 6"
Width 6"
Height 4"
V Angle 90°
V Depth 2"
V Width 4"
Number of Through Holes 2
Through Hole Diameter 7/16"
Through Hole Type Unthreaded
Center-to-Center 4"
Squareness Tolerance 0.0003"
Parallel Tolerance 0.0003"
Mounting Slot Height 5/8"
Machinable No
Country of Origin United States
Schedule B Number 8466.20.8040
