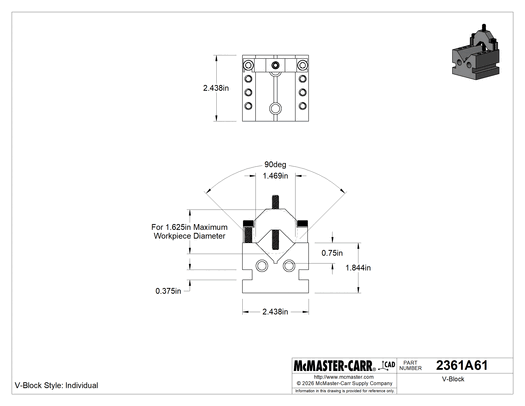

McMaster 2361A61 V-Block, Hardened, for 1-5/8" Maximum Workpiece Diameter
UPC: | Harmonization / Schedule B : 8466.20.8035
Country of Origin: United States | Shipping Weight: 3 lb
UPC: | Harmonization / Schedule B : 8466.20.8035
Country of Origin: United States | Shipping Weight: 3 lb
Precision ground to tight tolerances, these V-blocks help you accurately align and support round workpieces.

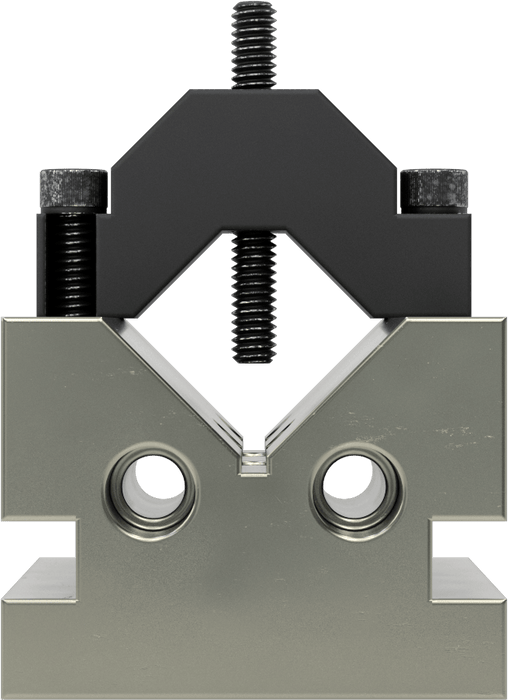

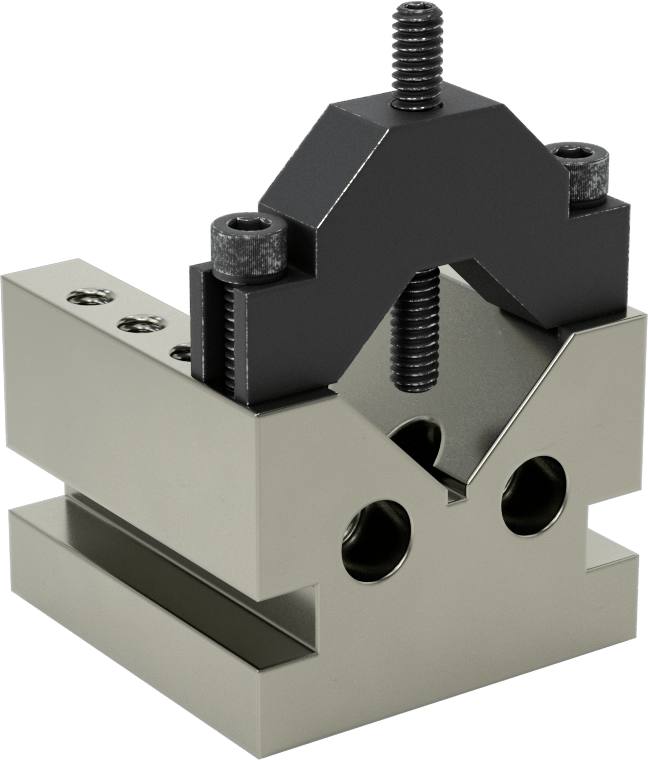

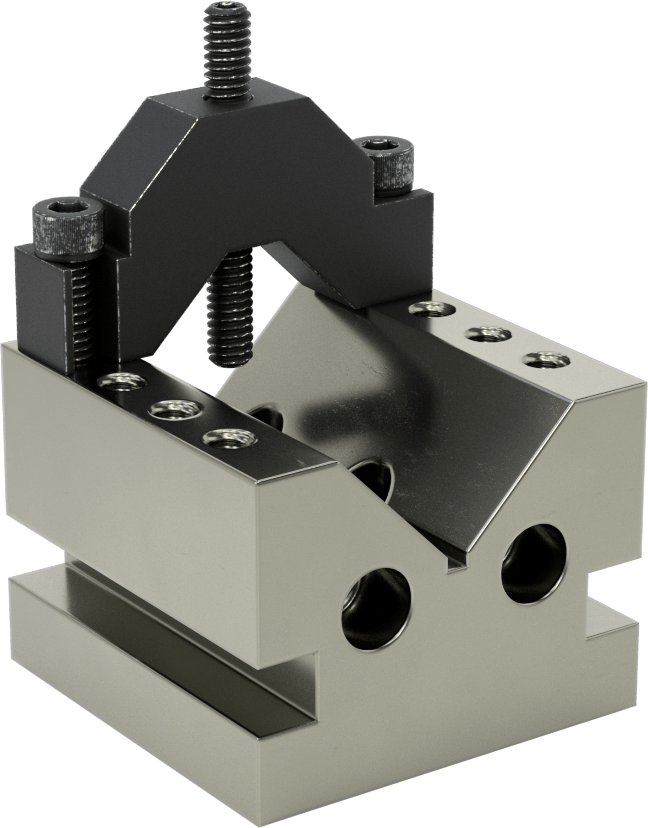

V-Blocks with Clamp — Choose a block with a clamp to secure your workpiece in place. The clamp is removable and shaped to fit inside the vee, so you can face it up or down to hold a variety of workpieces. Since it's flush with the block faces, you can position the blocks on any of their sides.
Hardened Steel — Hardened steel blocks are more durable and wear resistant than steel blocks, so they'll stay precise even with heavy use.
Style A — Styles A and B have mounting slots near their base, so you can attach them to work surfaces with setup clamps (not included).
| Sold As | Individual |
| V-Block Type | With Clamp |
| Material | Hardened Steel |
| Style | A |
| Minimum Workpiece Diameter | 5/32" |
| Maximum Workpiece Diameter | 1 5/8" |
| Length | 2 1/2" |
| Width | 2 1/2" |
| Height | 2" |
| V Angle | 90° |
| V Depth | 3/4" |
| V Width | 1 1/2" |
| Number of Through Holes | 2 |
| Through Hole Diameter | 5/16" |
| Through Hole Type | Unthreaded |
| Center-to-Center | 1" |
| Squareness Tolerance | 0.0002" |
| Parallel Tolerance | 0.0002" |
| Mounting Slot Height | 3/8" |
| Machinable | No |
| Country of Origin | United States |
| Schedule B Number | 8466.20.8035 |
