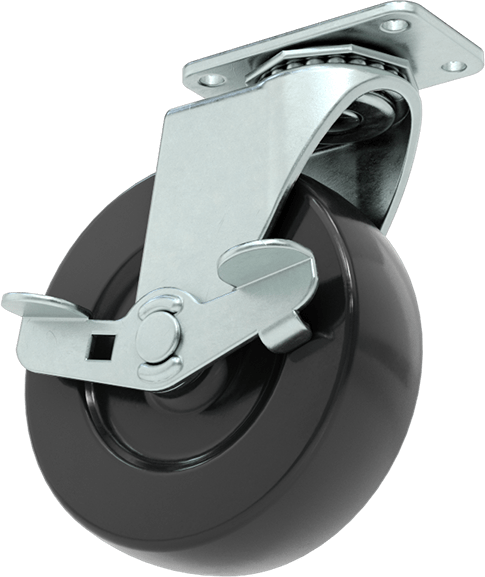

McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel

McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel

UPC: | Harmonization / Schedule B : 8716.90.3000

Country of Origin: United States | Shipping Weight: 0.68 lbs

$54.22 - $54.22
$54.22
$54.22 - $54.22
$54.22

The wheels dissipate static to protect sensitive electronic equipment from electrostatic discharge. Wheels are rubber for shock absorption.

Swivel Casters — Swivel casters have dual-raceway bearings for the smoothest swiveling.

Wheel Brake — Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.

Sleeve — Sleeve wheel bearings prevent wear to the wheel bore.

Length 2"
Width 1 3/16"
Style 1
Nonmarking Wheels No
Wheel Color Black
Wheel Type Solid
Hardness Rating Soft
Caster Type Swivel
Brake/Lock Type Wheel Brake
Diameter 3"
Width 15/16"
Number of 1

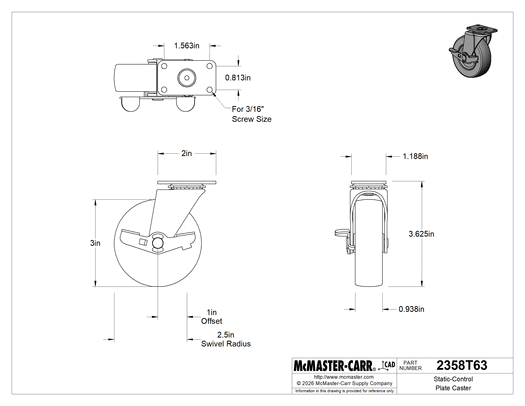

Mount Height 3 5/8"
Weight Capacity per Caster 100 lb.
Performance Static Control, Static Dissipative
Surface Resistivity 1× 10^6 ohm/sq.
Type Plain
Material Steel
Seal Type Open
Plain Type Sleeve
Location Right Side
Activation Foot Pedal
Caster Swivel Construction Kingpin
For Screw Size 3/16"
For Surface Type Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile
Fabrication Stamped
Material Zinc-Plated Steel
Hardness Durometer 80A
Mount Type Plate
Mounting Fasteners Included No
Center-to-Center Length 1 9/16"
Center-to-Center Width 13/16"
Type Ball
Seal Type Open
Construction Dual Raceway
Tread Style Flat
Wheel/Tread Material Rubber
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 871690.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
