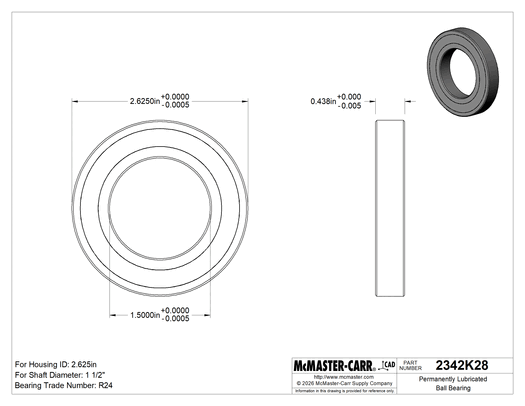

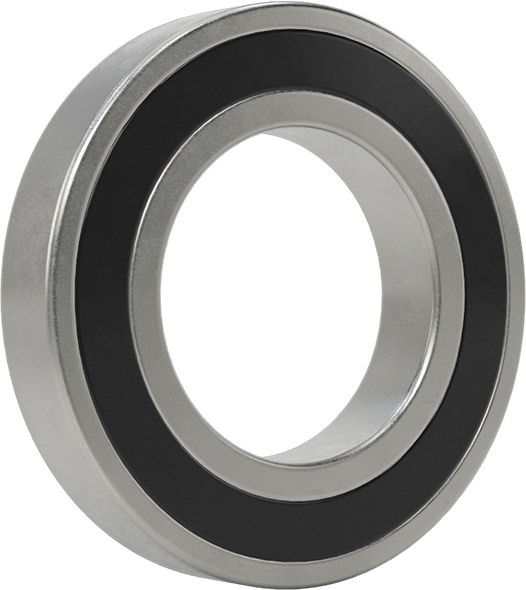

McMaster 2342K28 Permanently Lubricated Ball Bearing, Open, Trade Number R24, for 1-1/2" Shaft Diameter
UPC: | Harmonization / Schedule B : 8482.10.5048
Country of Origin: Japan | Shipping Weight: 0.05 lbs
UPC: | Harmonization / Schedule B : 8482.10.5048
Country of Origin: Japan | Shipping Weight: 0.05 lbs
Install and forget these self-lubricating bearings. Their lubricant is a solid material that fills the space between the balls and releases oil over time, so you'll never need to add more.
Open — With no rubber seal to block airflow, these bearings dissipate heat quickly, extending the life of the lubricant and reducing friction over time.
Steel — Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust.
ABEC Rating — Bearings with an ABEC rating meet industry tolerance standards established by the Annular Bearing Engineers Committee (ABEC). They're rated on a scale from 1 to 9. The higher the rating, the tighter the tolerance. Bearings rated ABEC 1 or 3 are precise enough for most applications. If your application consistently runs at high speeds or requires high accuracy, consider bearings rated ABEC 5 or higher, since they generate less friction and heat.
| For Shaft Type | Round |
| Bearing Seal Type | Open |
| Material | Steel |
| For Shaft Diameter | 1 1/2" |
| For Housing ID | 2 5/8" |
| Width | 7/16" |
| Width Tolerance | -0.005" to 0" |
| ABEC Rating | 1 |
| Dynamic Radial Load Capacity | 2,900 lb. |
| Maximum Rotation Speed | 5,700 rpm |
| Minimum | 10° F |
| Max. | 200° F |
| Inner Ring Type | Standard |
| Bearing Trade Number | R24 |
| Ball Bearing Profile | Standard |
| Ball Material | Steel |
| Bearing Construction | Single Row |
| Bearing Type | Ball |
| Cage Material | Steel |
| For Load Direction | Radial |
| ID | 1.5" |
| ID Tolerance | -0.0005" to 0" |
| Lubricant | Solid Polymer |
| Lubrication | Lubricated |
| OD | 2.625" |
| OD Tolerance | -0.0005" to 0" |
| Performance | Permanently Lubricated |
| Radial Clearance | 0.0002" to 0.0004" |
| Radial Clearance Trade Number | C0 |
| Shaft Mount Type | Press Fit |
| Static Radial Load Capacity | 2,200 lb. |
| System of Measurement | Inch |
| Country of Origin | Japan |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | 1C999 |
| REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848210.5048 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
