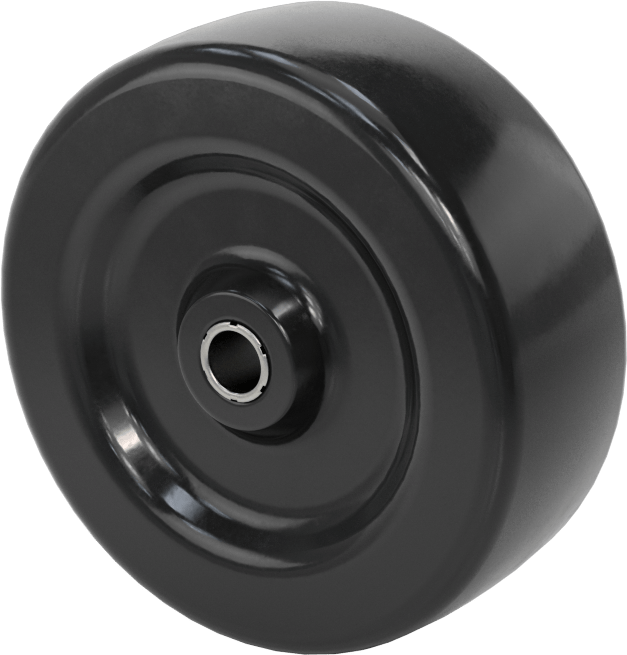

McMaster 2328T75 Static-Control Rubber Wheel, Black, 2-1/2" Diameter × 15/16" Wide, 90 lb. Capacity

McMaster 2328T75 Static-Control Rubber Wheel, Black, 2-1/2" Diameter × 15/16" Wide, 90 lb. Capacity

UPC: | Harmonization / Schedule B : 8302.20.0000

Country of Origin: United States | Shipping Weight: 1 lbs

$46.33 - $46.33
$46.33
$46.33 - $46.33
$46.33

These wheels dissipate static to protect sensitive electronic equipment from electrostatic discharge. The soft rubber wheels are shock absorbing and provide good traction on rough surfaces. Sleeve bearings prevent wear to the wheel bore but don't roll as easily as other bearings. Wheels meet FF-C-77 and FF-C-86 which requires an average electrical resistance of less than 250,000 ohms.

Wheel Color Black
Wheel/Tread Material Rubber
Hardness Rating Soft
Wheel Bearing Seal Type Open
Wheel Bearing Material Steel
Wheel Bearing Type Plain
Wheel Plain Bearing Type Sleeve
Wheel Type Solid
Wheel Diameter 2 1/2"
Wheel Width 15/16"
Hub Length 15/16"
Weight Capacity per Wheel 90 lb.
Surface Resistivity 1× 10^6 ohm/sq.
Hardness Durometer 80A
Tread Style Flat
Nonmarking Wheels No
Wheel Core Style Solid
Temperature Range -20° F to 125° F
Military Specification Fed. Spec. FF-C-77, Fed. Spec. FF-C-86
For Axle Diameter 1/4"
For Surface Type Asphalt, Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile
Performance Static Control, Static Dissipative
Pack Size 1
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
Schedule B Number 830220.0000
USMCA Qualifying No
