McMaster 2310A104 Rigid - Arm Magnetic - Base Indicator Holder Lug and Stem Mount, with Two 15" Long Fine - Adjustment Arms - KVM Tools Inc.KV2310A104

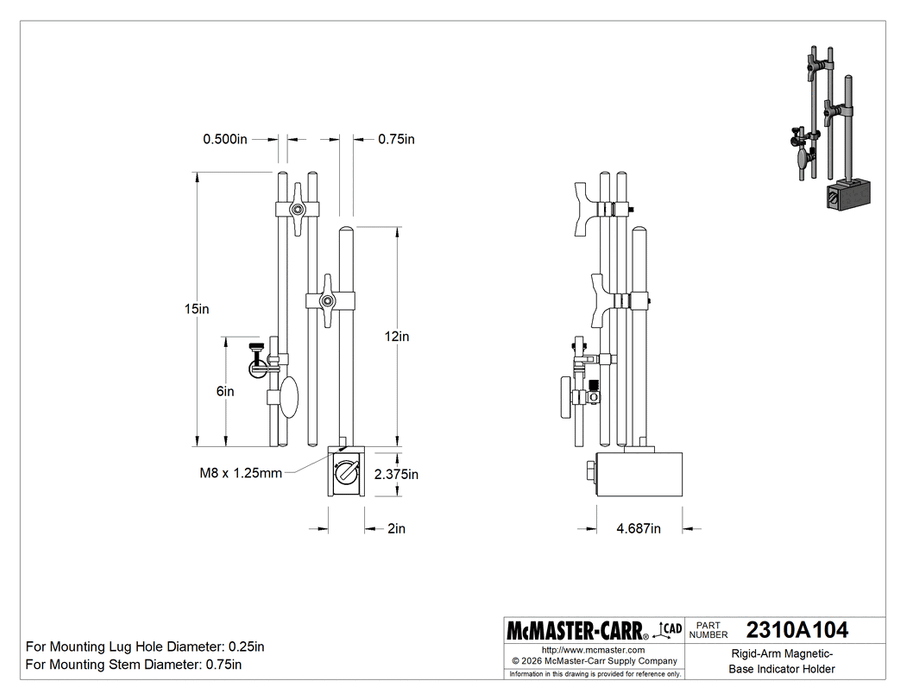

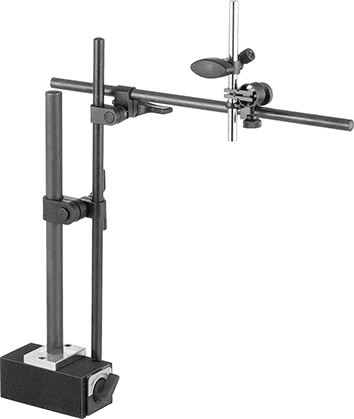

McMaster 2310A104 Rigid-Arm Magnetic-Base Indicator Holder Lug and Stem Mount, with Two 15" Long Fine-Adjustment Arms

UPC: | Harmonization / Schedule B : 8505.90.4000

Country of Origin: United States | Shipping Weight: 8.6 lbs

$556.12 - $556.12
$556.12
$556.12 - $556.12
$556.12

McMaster 2310A104 Rigid-Arm Magnetic-Base Indicator Holder Lug and Stem Mount, with Two 15" Long Fine-Adjustment Arms

Securely mount indicators to metal surfaces with the magnetic base on these holders. They have a switch that releases the magnet for easy setups.

Fine-Adjustment Arm—Holders with a fine-adjustment arm have a knob on the arm that lets you precisely adjust the arm’s angle or move the indicator up and down.

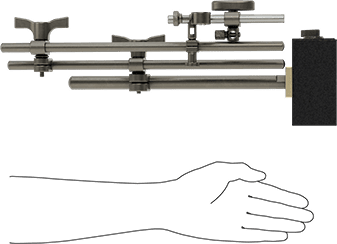

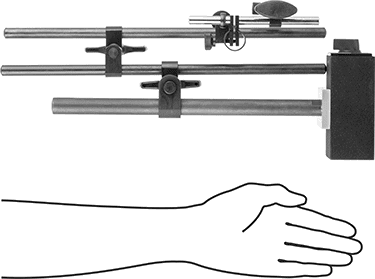

2 Arms—Holders with two arms have an extra long reach. Bend them where the two arms meet to change the direction of your indicator. You can also remove an arm if you’re using these holders in a tight space.

Mount Type

Stem, Lug
Features

Fine-Adjustment Arm, Magnetic-Release Switch
Number of Arms

2
For Mounting Lug Hole Diameter

1/4"
For Mounting Stem Diameter

3/4"
Base
Mount Type

Magnetic
Type

Flat
Length

4.687"
Width

2"
Height

2.375"
Thread Size

M8 x 1.25 mm
Material

Cast Iron
Magnetic Pull

180 lbf
Upright Post
Diameter

3/4"
Height

12"
Material

Steel
Arm
Length

15"
Diameter

0.5"
Type

Rigid
Country of Origin

United States
DFARS Compliance

Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)

EAR99
REACH Compliance

Not Compliant
RoHS Compliance

RoHS 3 (2015/863/EU) Compliant
Schedule B Number

850590.4000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying

Yes
