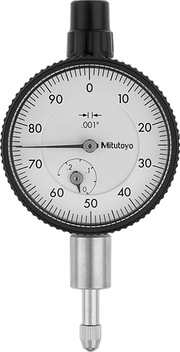

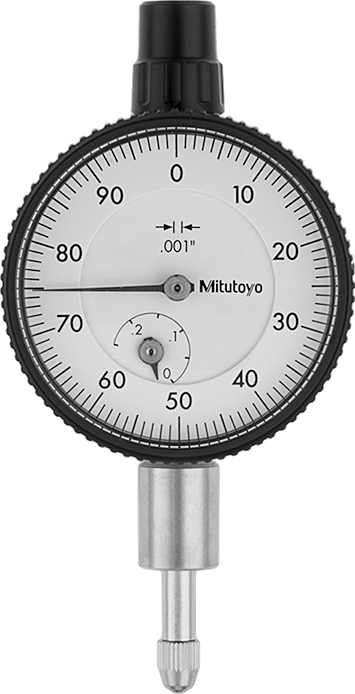

McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10
McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10
McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10
McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10
McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10
McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10
McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10
McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10

McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10

UPC: | Harmonization / Schedule B : 9031.80.8085

Country of Origin: Japan | Shipping Weight: 0.35 lbs

$374.75 - $374.75
$374.75
$374.75 - $374.75
$374.75

These indicators come with a calibration certificate traceable to NIST that states they’ve passed a test for accuracy. They have a continuous dial numbered clockwise around the face for direct measurements. A spring-loaded plunger retracts and extends to measure objects. Rotate the dial face for viewing at multiple angles.

Jeweled Bearing — Jeweled bearings are more sensitive and wear resistant than plain bearings for a longer service life.

Mount Type Lug, Stem
Bearing Type Jeweled
Distance Measured 0" to 0.250"
Measuring Increments 0.001"
Accuracy ±0.001"
Dial Indicator Size AGD Group 1
Mounting Stem Diameter 3/8"
Mounting Lug Hole Diameter 1/4"
Type Continuous
Face Movement Rotating
Face Color White
Hand Color Black
Hand Direction Clockwise
Diameter 1 5/8"
Reading Inch 0-100
Diameter 0.118"
Length 0.587"
Mounting Thread Size 4-48
Material Carbide
Manufacturer Model Number 1410A-10
Certificate Type Calibration Certificate Traceable to NIST
Container Type Cardboard Box
Dial Indicator Type Plunger
Display Type Dial
Manufacturer Mitutoyo
System of Measurement Inch
Country of Origin Japan
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 903180.8080
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
