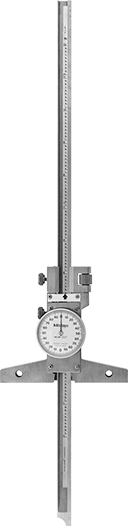

McMaster 2105A42 Mitutoyo Dial Depth Gauge, Model 527-313-50, 0 to 12" Measuring Range

McMaster 2105A42 Mitutoyo Dial Depth Gauge, Model 527-313-50, 0 to 12" Measuring Range

UPC: | Harmonization / Schedule B : 9017.30.8000

Country of Origin: Japan | Shipping Weight: 1.1 lbs

$697.07 - $697.07
$697.07
$697.07 - $697.07
$697.07

Check depth measurements at a glance. These gauges have a dial that displays how far their blade extends into slots, holes, and grooves. Designed for frequent use, they’re often found in machine shops and other areas where digital measurements and data transfer aren’t required.

7" Base Extension—Base extensions increase the base width of your depth gauge to measure large-diameter holes.

12" Base Extension—Base extensions increase the base width of your depth gauge to measure large-diameter holes.

Distance Measured 0" to 12"
Accuracy ±0.0015"
Measuring Increments 0.001"
Tip Width 0.16"
Width 0.43"
Material Stainless Steel
Width 4"
Length 11/16"
Material Stainless Steel
Overall Height 16 1/8"
Measurement per Dial Revolution 0.2"
Dial Face Color White
Manufacturer Mitutoyo
Manufacturer Model Number 527-313-50
Display Type Dial
Measures Depth
System of Measurement Inch
Country of Origin Japan
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 901730.8000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
