Name: McMaster 2092A37 Plunger Variance Indicator, with Certificate, Continuous Dial, 0-10mm Distance Measured
Brand: McMaster-Carr
Price: 338.64 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 9017.30.8000

Country of Origin: United States | Shipping Weight: 2.2 lbs

$338.64 - $338.64

$338.64

$338.64 - $338.64

$338.64

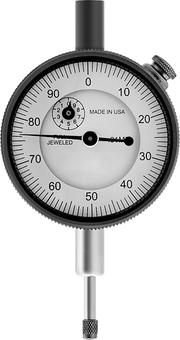

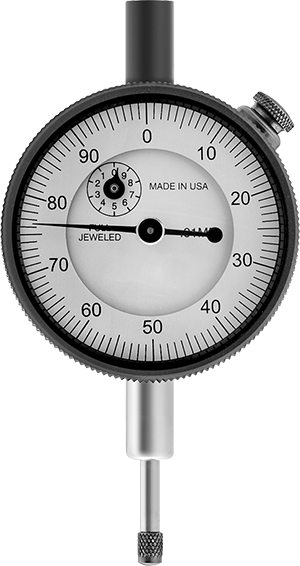

For direct measurements, these indicators have a continuous dial numbered clockwise around the face. A spring-loaded plunger retracts and extends to measure objects. Rotate the dial face for viewing at multiple angles. They have highly sensitive, wear-resistant jeweled bearings for a longer service life. All come with a calibration certificate traceable to NIST that states they’ve passed a test for accuracy.

Lifting Lever — Remove the spindle cap and install a lifting lever for easier lifting of the indicator spindle.

Mount Type	Lug, Stem
Bearing Type	Jeweled
Distance Measured	0 mm to 10.000 mm
Measuring Increments	0.01 mm
Accuracy	±0.01 mm
Dial Indicator Size	AGD Group 2
Mounting Stem Diameter	3/8"
Mounting Lug Hole Diameter	1/4"
Type	Continuous
Face Movement	Rotating
Face Color	Yellow
Hand Color	Black
Hand Direction	Clockwise
Diameter	2 1/4"
Reading Inch	0-100
Diameter	3/16"
Length	1/4"
Mounting Thread Size	4-48
Material	Steel
Certificate Type	Calibration Certificate Traceable to NIST
Container Type	Case
Dial Indicator Type	Plunger
Display Type	Dial
System of Measurement	Metric
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	901730.8000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes
Related Product	Lifting Lever
