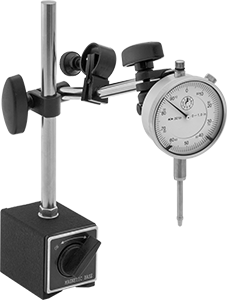

McMaster 20715A44 Economy Dial Plunger-Style Variance Indicator with Rigid-Arm Magnetic-Base Holder

Name: McMaster 20715A44 Economy Dial Plunger-Style Variance Indicator with Rigid-Arm Magnetic-Base Holder
Brand: McMaster-Carr
SKU: KV20715A44
Price: 91.43 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 9017.90.0150

Country of Origin: China | Shipping Weight: 3.8 lbs

$91.43 - $91.43

$91.43

$91.43 - $91.43

$91.43

Quantity

Place the magnetic base on metal surfaces for a solid mount. The base has a V-grooved bottom for mounting on flat and curved surfaces and magnetic release switch for easy setups. Use the fine-adjustment knob for precise positioning of the holder’s arm.

Indicator has a continuous dial numbered clockwise around the face for direct measurements. A spring-loaded plunger retracts and extends to measure objects. Rotate the dial face for viewing at multiple angles.

System of Measurement	Inch
Dial Indicator Type	Plunger
Measuring Range	0"-1"
Measuring Increments	0.001"
Accuracy	±0.001"
Industry Designation	AGD Group 2
Mount Type	Lug, Stem
Indicator Mounting Stem Diameter	3/8"
Mounting Lug Hole Diameter	1/4"
Bearing Type	Plain
Display Type	Dial
Dial
Type	Continuous
Face Type	Rotating
Face Color	White
Hand Color	Black
Hand Direction	Clockwise
Diameter	2 3/8"
Reading	0-100
Contact Point
Head Diameter	0.1"
Length	1/4"
Mounting Thread Size	4-48
Material	Steel
Base
Mount Type	Magnetic
Type	V-Grooved
Length	2 1/2"
Width	2"
Height	2 1/4"
Material	Cast Iron
Base Magnetic Pull	132 lbs.
Upright Post
Diameter	7/16"
Height	7"
Material	Steel
Arm Length	5 13/16"
Arm
Flexibility	Rigid
Material	Steel
Container Type	Case
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	Peoples Republic of China
Schedule B	901790.0150
ECCN	EAR99
