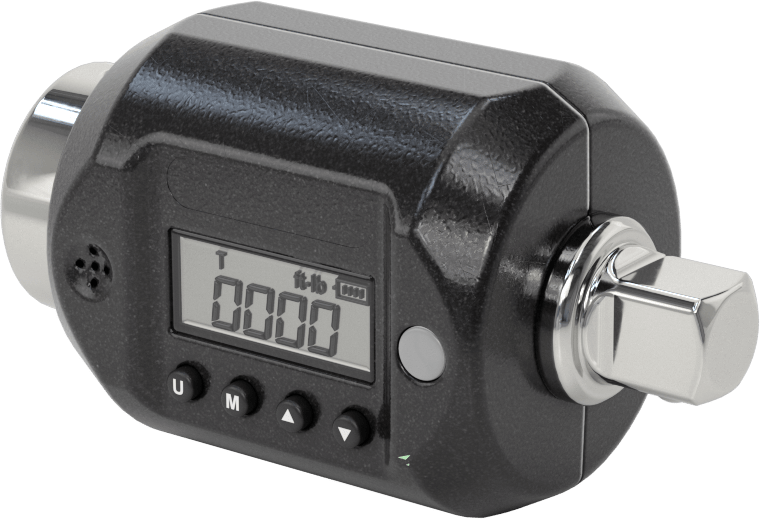

McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length
McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length
McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length
McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length
McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length
McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length
McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length
McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length

McMaster 1989N44 Torque-and-Angle Measuring Socket Adapter, 1/2" Square Drive, 3-7/8" Overall Length

UPC: | Harmonization / Schedule B : 8204.20.0000

Country of Origin: United States | Shipping Weight: 2.09 lbs

$925.96 - $925.96
$925.96
$925.96 - $925.96
$925.96

A digital display shows how torque measurements change as you turn the wrench. Set the desired torque and angle—lights and an audible alarm indicate when target has been reached or exceeded.

Note: The accuracy ratings do not apply to the lower 10% of the torque range.

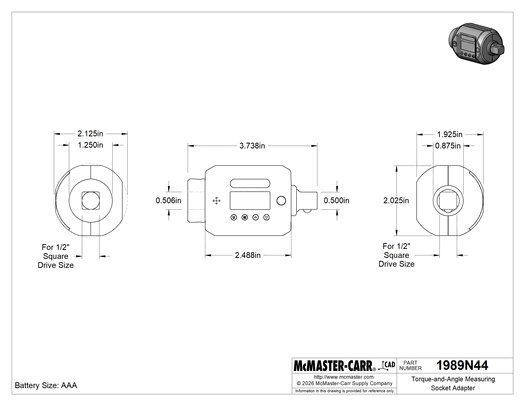

Square Drive Size 1/2"
Overall Length 3 7/8"
OD 2 1/8"
Torque Range 150 to 3,000 in·lbf
12.5 to 250 ft·lbf
17 to 340 N-m
Torque-Limiting Direction Clockwise and Counterclockwise
Graduations 0.6 in·lbf
0.3 ft·lbf
0.6 N-m
Clockwise ±2%
Counterclockwise ±2%
Maximum Rotation Speed 300 rpm
Angle 5° to 360°
Angle Percentage Accuracy ±1%
Material Chrome-Plated Steel
Batteries Included Yes
Battery Size AAA
Container Type Plastic Case
Display Type Digital
Drive Type Nonimpact
Number of Batteries Required 3
Performance Angle Measuring
Socket Type Torque-and-Angle Measuring Adapter
Sold As Individual
Torque Adjustability Adjustable
Units of Measure in·lbf, ft·lbf, N-m
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 820420.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
Additional Specifications SDS
