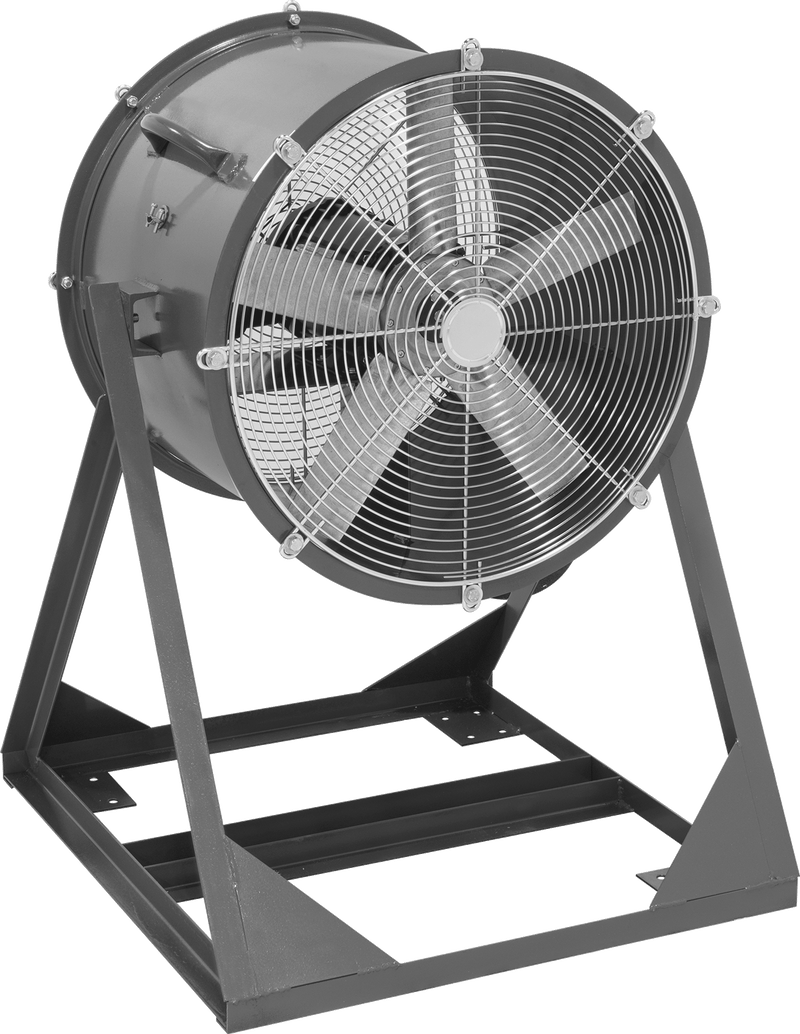

McMaster 1903K54 Hazardous Location Jet Stream Fan, without Wheels, 120/230V AC, 18" Blade Diameter

McMaster 1903K54 Hazardous Location Jet Stream Fan, without Wheels, 120/230V AC, 18" Blade Diameter

UPC: | Harmonization / Schedule B : 8414.59.9080

Country of Origin: United States | Shipping Weight: 110 lbs

$3,768.71 - $3,768.71
$3,768.71
$3,768.71 - $3,768.71
$3,768.71

UL listed for use in hazardous environments, these fans are often used to cool warehouse aisles and production lines. They generate a stream of air that travels farther than air from conventional fans. All fans have a totally enclosed motor enclosure, which can be used in dirty, dusty, and wet environments.

Direct Drive — Direct-drive fans have fewer moving parts than belt-drive fans for less maintenance.

Mounting Location Floor
Mounting Type Freestanding
Voltage and Connection 120/230V AC, Single Phase—Hardwire
Blade Diameter 18"
Blade Material Aluminum
Airflow 4,000 ft³/min
Volume (Sound) @ Distance 76 dBA @ 10 ft.
Motor Speed 1,750 rpm
Number of Speeds 1
Power 1/3 hp
Current 6.0 amp/3.0 amp
Overall Height 38"
Overall Width 24"
Overall Depth 32"
Fan Head Movement Non-Oscillating
Drive Type Direct
Housing Material Steel
Guard Material Steel
Application Cooling
Certification CSA Certified, UL Listed
Environment Hazardous
Hazardous Location Protection Type Explosion Proof
Hazardous Location Rating NEC Class I Divisions 1, 2 Groups C, D; NEC Class II Divisions 1, 2 Groups E, F, G
Mobility Stationary
Motor Enclosure Type Totally Enclosed
NEC Hazardous Location Temperature Classification T3C (320° F)
Power Source Electric
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 841459.9080
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
