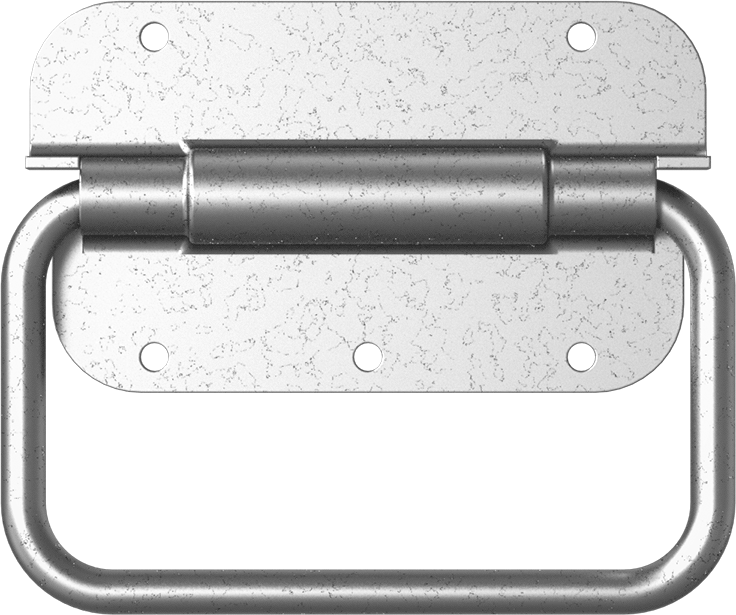

McMaster 1856A71 Folding Round Pull Handle with Mount Plate, Spring-Loaded, Dull 300 Stainless Steel, 4-1/2" Wide Handle

UPC: | Harmonization / Schedule B : 8302.49.7500

Country of Origin: China | Shipping Weight: 0.5 lbs

Original price $85.04 - Original price $85.04
Original price
$85.04
$85.04 - $85.04
Current price $85.04

When not in use, the spring in these handles keeps the folding grip flush with the mounting plate and prevents rattling. Fasten the handles directly to the front of your surface to open and close a variety of doors and drawers on chests, crates, furniture, machines, and equipment. All have round grips that allow your hand to pivot in any direction.

300 Series Stainless Steel—Stainless steel handles have excellent corrosion resistance, making them the best choice for harsh environments. They also have good chemical resistance.

Style 3
Style Round
Diameter 5/16"
Material 300 Series Stainless Steel
Appearance Dull
Folding Angle 90°
Number of Mounting Holes 5
Handle Width 4 1/2"
Projection 2 5/8"
Pull Capacity Not Rated
Size No. 10
Height 2 3/4"
Width 4 3/4"
Thickness 1/16"
Mounting Fasteners Included No
Minimum -40° F
Maximum 240° F
Handle Style Folding, Pull
Mount Type Unthreaded Through Hole
System of Measurement Inch
Country of Origin China
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 830249.7500
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
