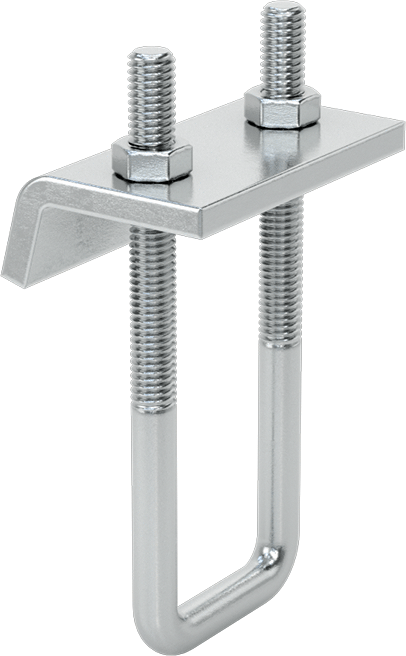

McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel

McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 0.34 lbs

$53.16 - $53.16
$53.16
$53.16 - $53.16
$53.16

Attach strut channel to structural beams without welding or drilling. Since these mounts clamp into place, you can easily reposition them as your needs change.

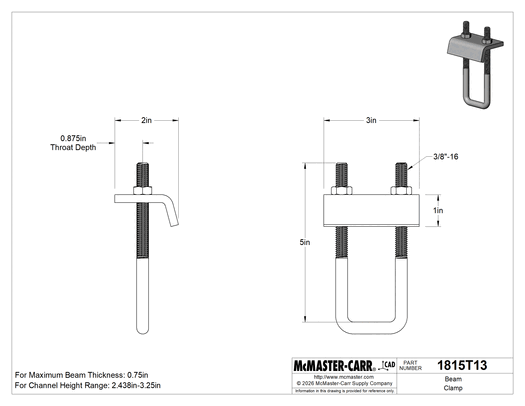

Style 1—Mounting plates grip the beam flange while the square U-bolts cradle the channel. Fasten these mounts with the included hex nuts. Use in pairs; weight capacity is per pair.

Zinc-Plated Steel—Strong and durable with a zinc plating that protects from occasional exposure to moisture.

Framing Type Strut Channel
Strut Channel Framing Component Beam Mount
Material Zinc-Plated Steel
Height 2 7/16" to 3 1/4"
Width 1 5/8"
For Beam Shape Flat, Taper
For Beam Thk. 3/4"
Weight Capacity 1,200 lb.
Throat Depth 7/8"
Length 2"
Width 3"
Height 1"
Mounting Fasteners Included Yes
Beam Mount Location Bottom
For Mounting Orientation Perpendicular
For Strut Channel Type High Profile
For Suspending Strut Channel
Mount Type Clamp On
Mounting Location Beam
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 732690.8630
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
