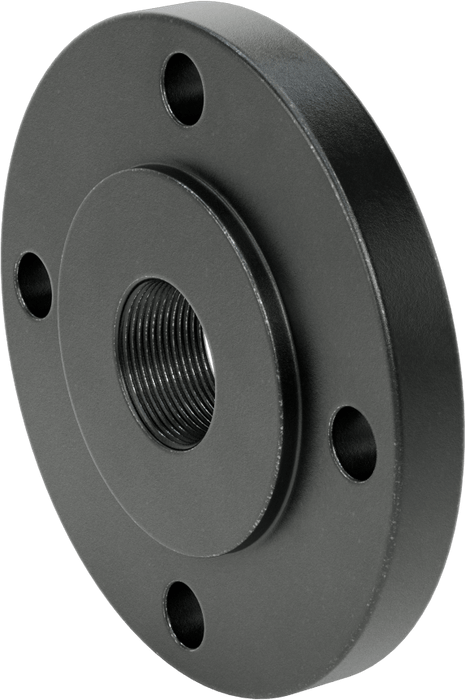

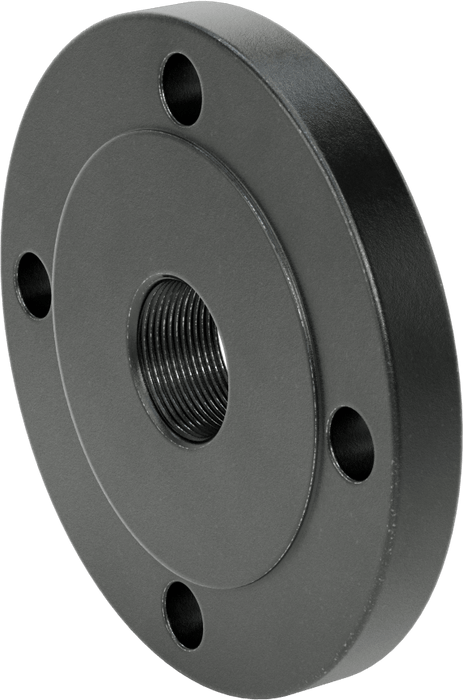

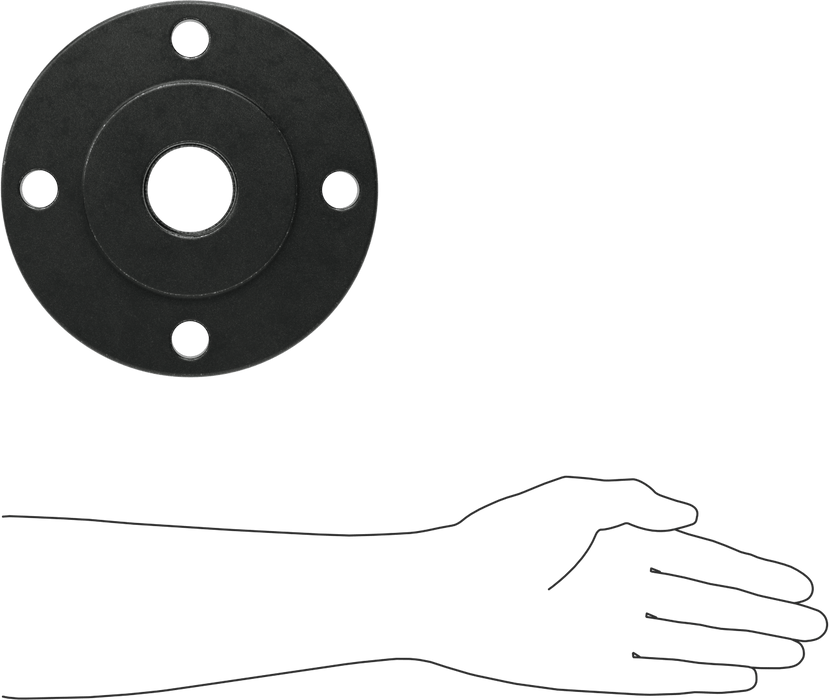

McMaster 1802N36 Low-Pressure Steel Threaded Pipe Flange, 1-1/2 NPT × 3 Flange Pipe Size

McMaster 1802N36 Low-Pressure Steel Threaded Pipe Flange, 1-1/2 NPT × 3 Flange Pipe Size

UPC: | Harmonization / Schedule B : 7307.91.2000

Country of Origin: United States | Shipping Weight: 1 lbs

$255.42 - $255.42
$255.42
$255.42 - $255.42
$255.42

Use these flanges for low-pressure applications in noncorrosive environments. Bolt two flanges of the same size together with a gasket (sold separately) to create an access point within a line.

Pressure Rating Low Pressure
Fabrication Forged
Shape Straight
Fitting Type Reducer, Flange
Fitting Connection NPT Female
Pipe Size (A) 1 1/2
For Flange Pipe Size (B) 3
Flanged Connection Surface (B) Raised

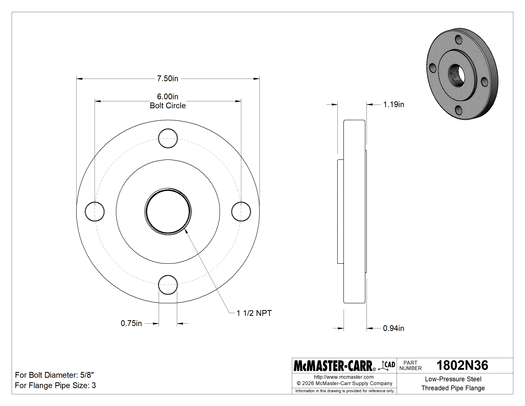

Flange OD 7 1/2"
For Bolt Diameter 5/8"
Bolt Hole Diameter 3/4"
Number of Bolt Holes 4
Bolt Circle Diameter 6"
Pressure Class 150
Material Steel
Maximum Pressure @ Temperature 285 psi @ 72° F
Maximum Steam Pressure @ Temperature 230 psi @ 300° F
Certificate Form Digital
Certificate Type Material Certificate with Traceable Lot Number
Connects To Pipe
Flange Construction One Piece
For Fitting Material Iron, Steel
For Pipe Material Steel
For Pipe Schedule 40
For Fitting Pressure Class 125, 150
For Use With Air, Natural Gas, Oil, Steam, Water
Specifications Met ANSI/MSS SP-25, ASME B16.5, ASTM A105, MSS SP-6
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 730791.2000
USMCA Qualifying Yes
