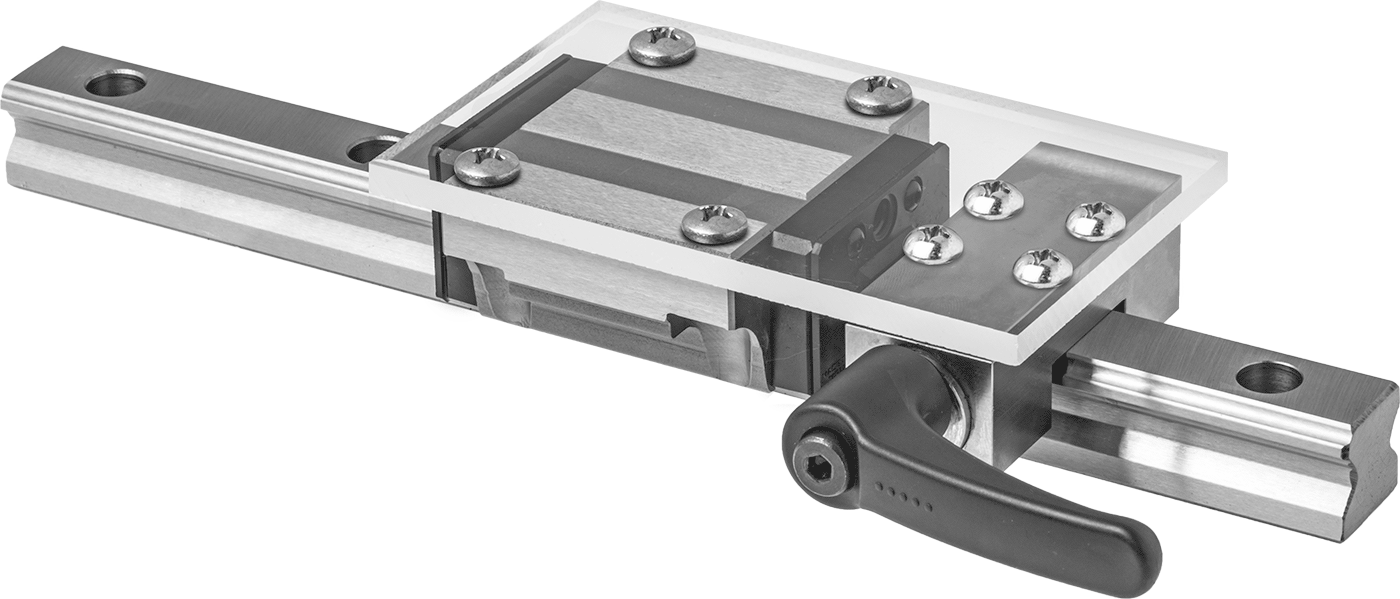

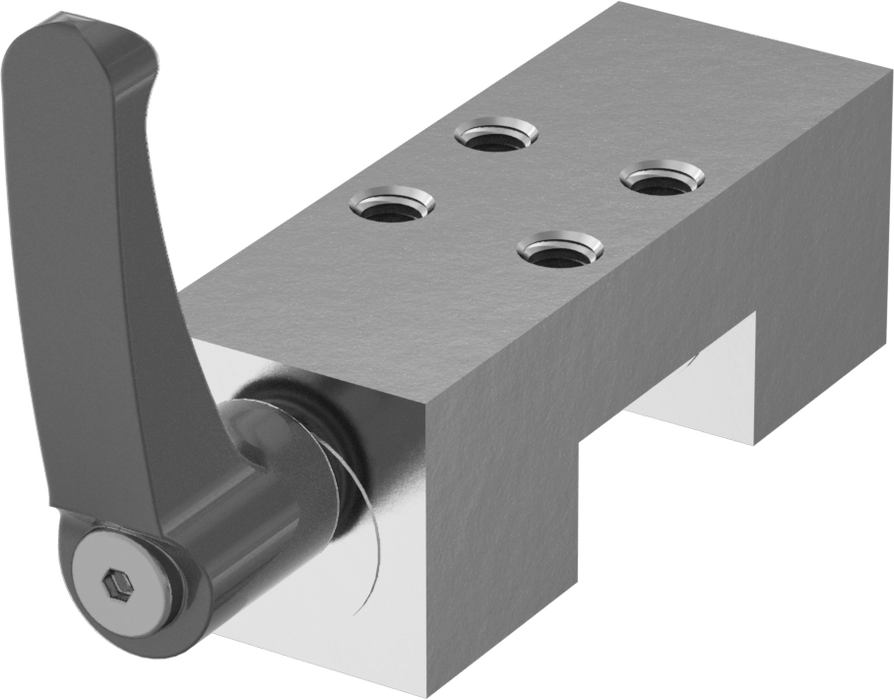

McMaster 1685N28 Hand Brake for Ball Bearing Carriage, for 45 mm Wide Rail

Name: McMaster 1685N28 Hand Brake for Ball Bearing Carriage, for 45 mm Wide Rail
Brand: McMaster-Carr
Price: 390.24 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8482.99.1050

Country of Origin: Germany | Shipping Weight: 1 lbs

$390.24 - $390.24

$390.24

$390.24 - $390.24

$390.24

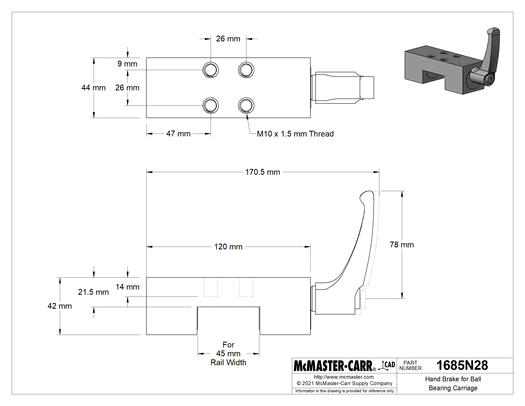

Block Height	42 mm
Block Length	44 mm
Block Material	Steel
Block Width	120 mm
For Rail Width	45 mm
Handle Length	78 mm
Handle Material	Plastic
Handle Type	Lever
Load Fastening	From Top
Maximum Clamping Force	445 lbf
Maximum Temperature	155° F
Mounting Fasteners Included	No
Mounting Hole Depth	14 mm
Mounting Hole Thread Size	M10 × 1.5 mm
Number of Mounting Holes	4
Overall Width	170.5 mm
Country of Origin	Germany
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	EAR99
REACH Compliance	REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848299.1050
USMCA Qualifying	No
