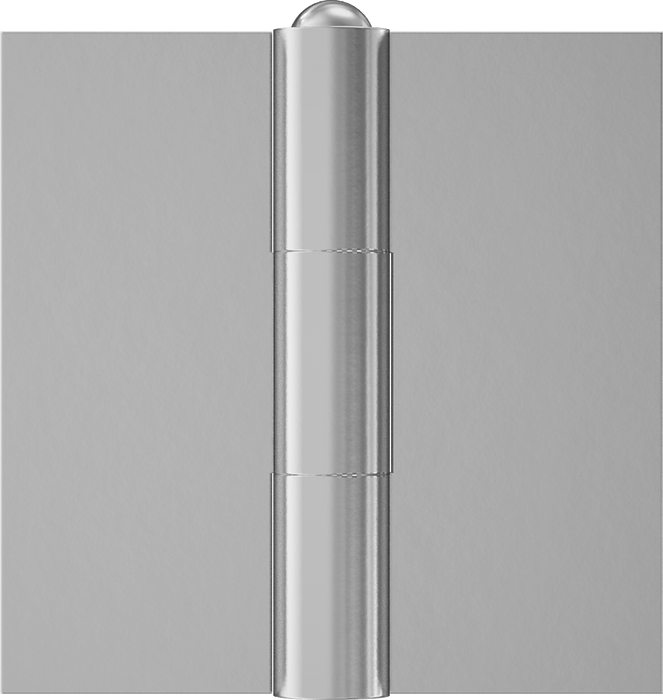

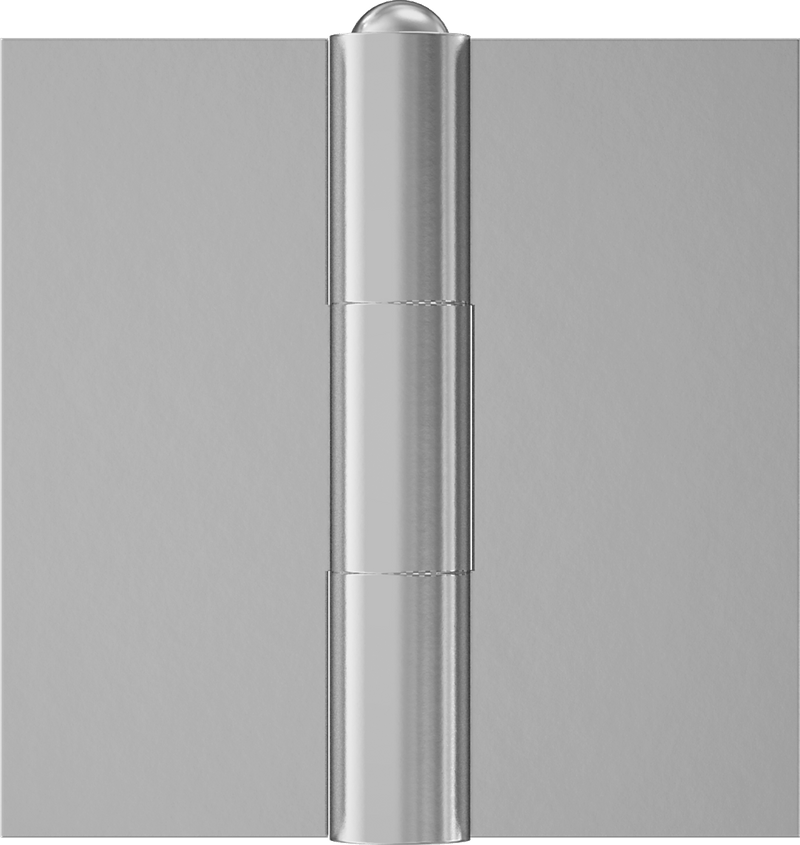

McMaster 1609A2 Hinge without Holes, Removable Pin, 5" × 2-1/2" Door Leaf, 1/4" Leaf Thickness

McMaster 1609A2 Hinge without Holes, Removable Pin, 5" × 2-1/2" Door Leaf, 1/4" Leaf Thickness

UPC: | Harmonization / Schedule B : 8302.10.4090

Country of Origin: United States | Shipping Weight: 1 lbs

$111.27 - $111.27
$111.27
$111.27 - $111.27
$111.27

Install these hinges your way by drilling holes or welding onto doors and frames. They offer more mounting flexibility than hinges with holes.

Mounting Location Surface
Material Aluminum
Pin Type Removable

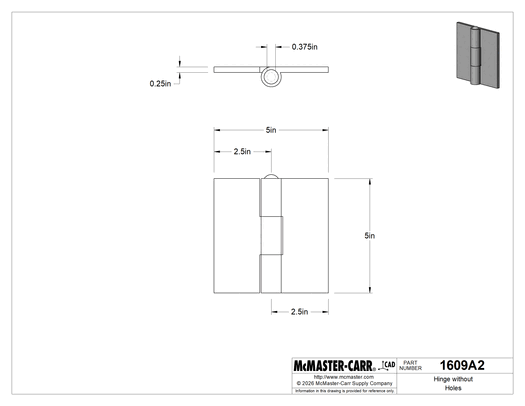

Door Leaf Height 5"
Door Leaf Width 2 1/2"
Overall Width 5"
Leaf Thickness 0.250"
Range of Motion 265°
Pin Material 5052 Aluminum
Appearance Dull
Door Mounting Location Left Side, Right Side
For Door Type Cabinet, Chest, Enclosure, Gate, Hatch
Hinge Type Butt
Mount Type Screw On, Weld On
Mounting Holes Without Holes
Opening/Closing Action Open/Close Freely
Pin Diameter 3/8"
Weight Capacity Not Rated
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 830210.4090
USMCA Qualifying Yes
