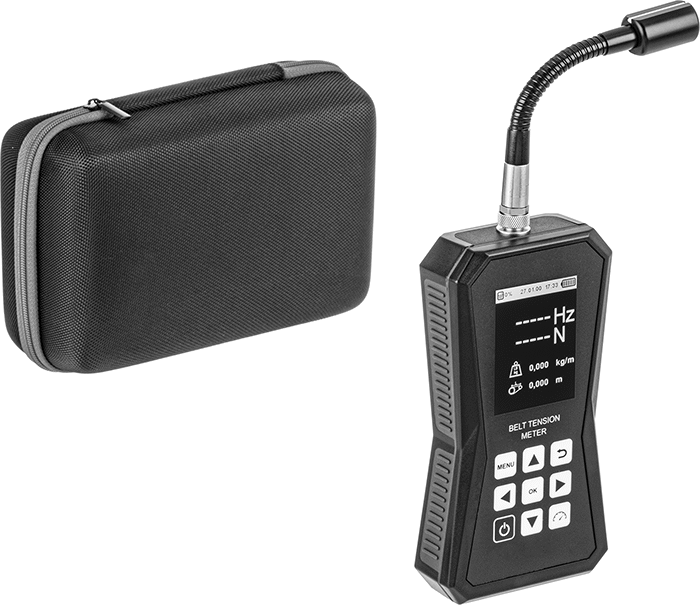

McMaster 1455T103 Economy Ultrasonic Belt Tension Gauge, V/Flat/Timing Belts, 1–99,900 lbf Range

McMaster 1455T103 Economy Ultrasonic Belt Tension Gauge, V/Flat/Timing Belts, 1–99,900 lbf Range

UPC: | Harmonization / Schedule B : 9031.80.8080

Country of Origin: Germany | Shipping Weight: 2.00 lb

$1,754.36 - $1,754.36
$1,754.36
$1,754.36 - $1,754.36
$1,754.36

Non-contact ultrasonic belt tension gauge. Read the frequency of a plucked belt and convert to tension force. Handles V, flat, and timing belts of any width. Data logging capabilities and flexible probe for hard-to-reach installations.

Grade Economy
For Belt Type V, Flat, Timing
For Maximum Belt Width Any
Tension Force Rating 1 lbf to 99,900 lbf (1 N to 444,000 N)
Tension Frequency Rating 10 Hz to 900 Hz
Height 6"
Width 3"
Depth 1 1/2"
Cord Length 6"
Power Source Battery (3 × AA disposable, included)
Features Flexible Probe, Keypad, Data Logging Capabilities
Includes Plastic case
Country of Origin Germany
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 903180.8080
USMCA Qualifying No
