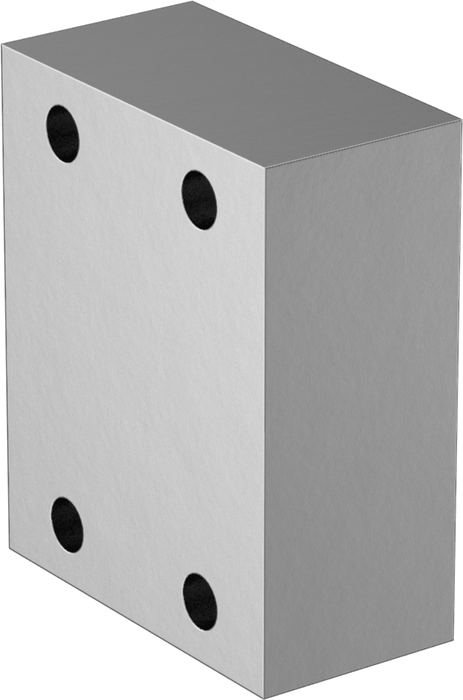

McMaster 1431N027 High-Pressure Stainless Steel SAE Unthreaded Pipe Flange, Cap with Flat Surface on Back, 2 SAE Flange Size

McMaster 1431N027 High-Pressure Stainless Steel SAE Unthreaded Pipe Flange, Cap with Flat Surface on Back, 2 SAE Flange Size

UPC: | Harmonization / Schedule B : 7307.21.0000

Country of Origin: United States | Shipping Weight: 1 lbs

$578.73 - $578.73
$578.73
$578.73 - $578.73
$578.73

Create an access point in a high-pressure hydraulic fluid line with these flanges. They are also known as Code 61 SAE hydraulic flanges. To connect, bolt a flange with an O-ring groove surface to a flange with a flat surface of the same size. Flanges are 316 stainless steel for excellent corrosion resistance.

316/316L Stainless Steel — Flanges are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel flanges, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.

Pressure Rating High Pressure
Flange Standard SAE
Fabrication Machined
Shape Cap and Plug
Fitting Type Cap, Flange
Fitting Connection Flanged
Material 316/316L Stainless Steel
SAE Pipe Flange Size 2
Dash Size 32
Flanged Connection Surface Flat
For Bolt Diameter 1/2"
Bolt Hole Diameter 0.531"
Number of Bolt Holes 4
Maximum Pressure @ Temperature 3,000 psi @ 72° F

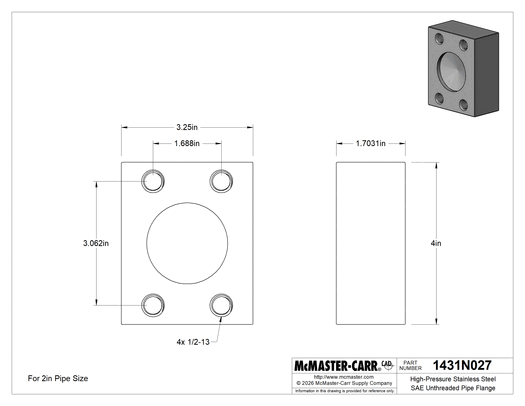

(A) 1.688"
(B) 3.063"
Connects To Pipe
Height 4"
Width 3 1/4"
Depth 1 45/64"
Flange Code 61
Flange Construction One Piece
Flange Type Blind
For Bolt System of Measurement Inch
For Use With Hydraulic Fluid
Mounting Hardware Included No
Performance Chemical Resistant, Ultra Corrosion Resistant
Specifications Met ISO 6162, SAE J518
Threading Unthreaded
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN 2B999
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 730721.0000
USMCA Qualifying Yes
