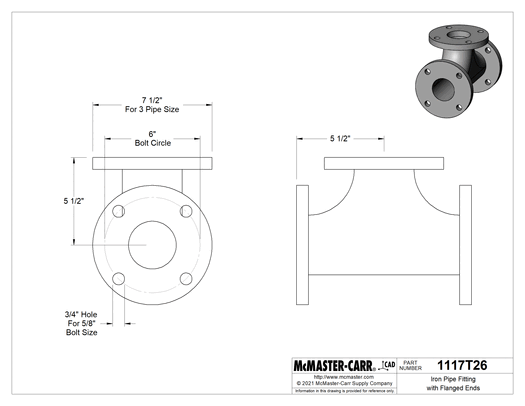

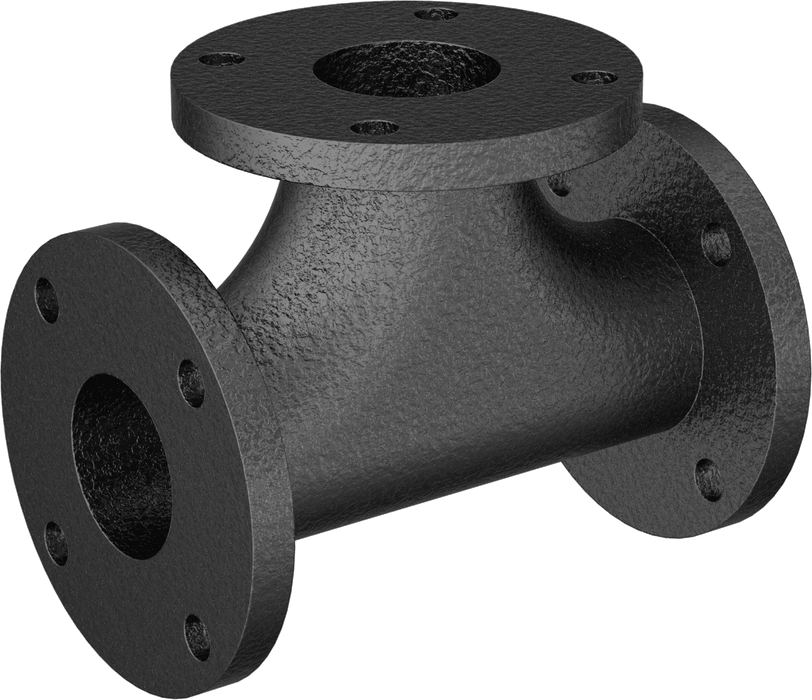

McMaster 1117T26 Iron Pipe Fitting with Flanged Ends, FM-Approved, Tee Connector, 3 Pipe Size

McMaster 1117T26 Iron Pipe Fitting with Flanged Ends, FM-Approved, Tee Connector, 3 Pipe Size

UPC: | Harmonization / Schedule B : 7307.11.0030

Country of Origin: Mexico | Shipping Weight: 1 lbs

$784.49 - $784.49
$784.49
$784.49 - $784.49
$784.49

FM approved, these fittings are suitable for use in fire-protection systems. All have flat-surface flanged ends that only mate to another same-size flat-surface flange, pump, or valve with a gasket (sold separately) to create an access point in a pipeline. Use them in noncorrosive areas.

Pressure Rating Low Pressure
End Type Flanged
Shape Tee
Fitting Type Connector
Fitting Connection Flanged
Pipe Size 3
Flange OD 7 1/2"
Material Iron
Maximum Pressure @ Temperature 150 psi @ 72° F
Maximum Steam Pressure @ Temperature 125 psi @ 350° F
Certification FM Approved, UL Listed
Bolt Circle Diameter 6"
Bolt Hole Diameter 3/4"
Number of Bolt Holes 4
Connects To Pipe
Fabrication Cast
Flanged Connection Surface Flat
For Bolt Diameter 5/8"
Class 150
For Bolt Material Steel
For Pipe Material Steel
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water
Military Specification Fed. Spec. WW-F-406
Specifications Met ASME B1.20.1, ASME B16.1, ASTM A126, ASTM B307
Country of Origin Mexico
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 730711.0030
USMCA Qualifying No
